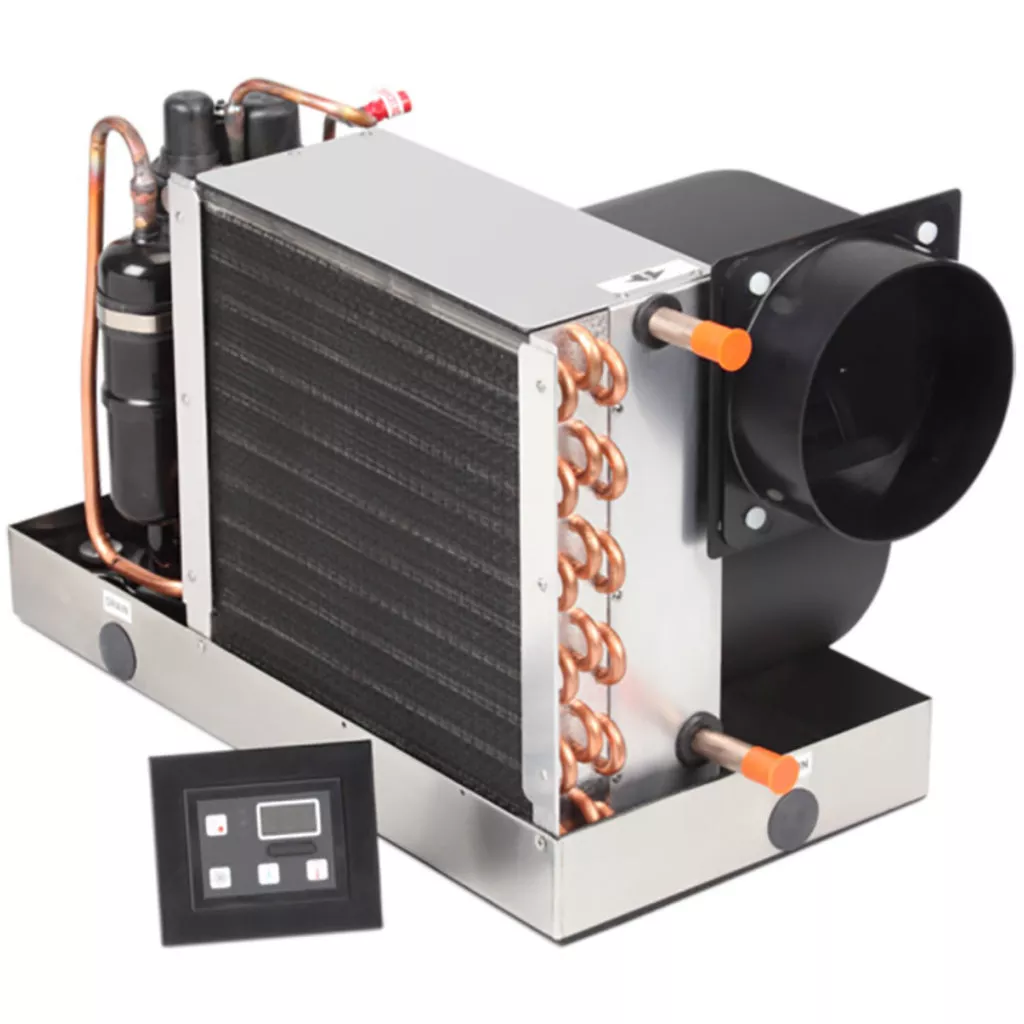

Stay comfortable on your boat all year with Dometic Marine Air’s 16,000 BTU EnviroComfort Air Conditioning Retrofit Kit, offering reverse-cycle cooling and heating capability.
This unit replaces comparable self-contained air conditioners in the 12,000 to 16,000 BTU range, with high-velocity blowers, a stainless-steel drain pan, and removable air filters. Ideal for replacing an existing system or for new installations.
Features
- High-velocity, rotatable blower for horizontal or vertical installation
- Environmentally friendly R-410A refrigerant
- Easy to use Dometic Passport I/O digital control and display (P/N 9600005997)
- Plastic remote electrical box for convenience in mounting
- Stainless-steel drain pan
- Pre-installed return-air filter, easily removable and cleanable
- Small, compact, space-saving design
Specifications
- Input voltage – 115 V
- Starting amps – 62 A
- Fuse Max. / Min. – 40 A/25 A
- Input frequency 50/60 Hz
- Refrigerant type – R410A
- Colling capacity – 16,000 BTU
- Min. supply duct size – 6″
- Seawater inlet connection – .625″
- Dimensions – Height 13.5″ x Width 20″ x Depth 11.25″
Comes With
- Self-contained AC unit
- Digital control w/bezel and 15′ cable
- Instruction manual
