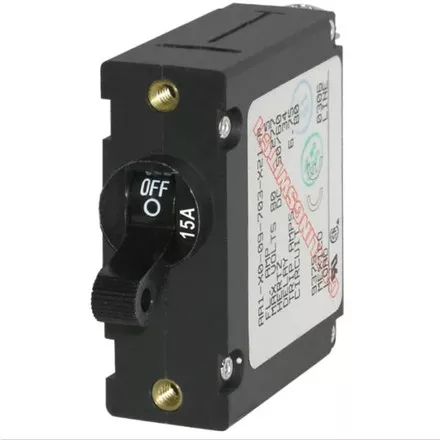

A Series Toggle Circuit Breakers – Single Pole, Black
Combines switching and circuit protection into a single device
- The standard circuit breaker for Blue Sea Systems Traditional Metal Power Distribution Panels
- Single pole is frequently used for AC or DC Branch circuit protection
- Trip Free – cannot be held closed after trip
- CE marked, TUV certified, CSA certified, UL 1077 recognized
| Voltage Nominal Operating | 120/240V AC |
|---|---|
| Temperature Min. Operating | -40°C |
| Temperature Max. Operating | 85°C |
| Switching Cycles | 10,000 @ rated Amps & Volts |
| Type | Magnetic Hydraulic – Trip free |
| Terminal Screw | 10-32 Stainless Steel |
| Terminal Screw Torque | 14-15 in-lb |
| Mounting Screw | 6-32 Stainless Steel (included) |
| Mounting Nut Torque | 6-8 in-lb |
| Part Number | Amps | Max. Voltage | Colour | Poles |
|---|---|---|---|---|
| BSS-7200 | 5A | 32V DC | Black | 1 |
| BSS-7204 | 10A | 65V DC | Black | 1 |
| BSS-7208 | 15A | 32V DC | Black | 1 |
| BSS-7212 | 20A | 65V DC | Black | 1 |
| BSS-7216 | 25A | 65V DC | Black | 1 |
| BSS-7220 | 30A | 32V DC | Black | 1 |
| BSS-7224 | 40A | 65V DC | Black | 1 |
| BSS-7228 | 50A | 32V DC | Black | 1 |
