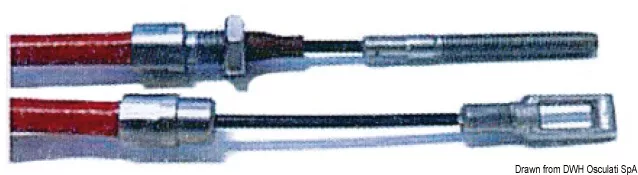

AL-KO Boat Trailer Brake Cables – Type A (SB-SR-1635), Type 140/B (1625 / 1637 / 2051 / 2361 Europlus) & Type B (Compact 1637 / 2051Aa / 2051Ab)
The AL-KO Boat Trailer Brake Cables are high-quality replacement cables designed for mechanical trailer braking systems. Each cable is supplied complete with a sheave and headed cable, providing a dependable solution for restoring smooth and reliable brake operation on compatible AL-KO trailer axles.
The range includes three cable configurations to suit different AL-KO brake assemblies. Type A is designed for SB-SR-1635 brake systems, Type 140/B fits AL-KO 1625, 1637, 2051 and 2361 Europlus brake assemblies, while Type B is compatible with Compact 1637, 2051Aa and 2051Ab systems. Multiple cable lengths allow the correct replacement to be selected for various trailer layouts.
Key Features
- Replacement brake cables for AL-KO mechanical trailer braking systems
- Type A for SB-SR-1635 brake assemblies
- Type 140/B for AL-KO 1625, 1637, 2051 and 2361 Europlus brake systems
- Type B for Compact 1637, 2051Aa and 2051Ab brake assemblies
- Supplied complete with sheave and headed cable
- Available in multiple lengths from 800 mm to 1685 mm
- Designed for reliable and consistent brake operation
Technical Specifications
| Osculati Code | Brake System Type | Cable Length |
|---|---|---|
| 02.035.32 | Type A (SB-SR-1635) | 920–1145 mm |
| 02.035.33 | Type A (SB-SR-1635) | 1040–1265 mm |
| 02.035.34 | Type A (SB-SR-1635) | 1160–1385 mm |
| 02.035.35 | Type A (SB-SR-1635) | 1340–1565 mm |
| 02.035.36 | Type A (SB-SR-1635) | 1460–1685 mm |
| 02.035.40 | Type 140/B (1625 / 1637 / 2051 / 2361 Europlus) | 800–1020 mm |
| 02.035.41 | Type 140/B (1625 / 1637 / 2051 / 2361 Europlus) | 1040–1260 mm |
| 02.035.42 | Type 140/B (1625 / 1637 / 2051 / 2361 Europlus) | 1220–1440 mm |
| 02.035.53 | Type B (Compact 1637 / 2051Aa / 2051Ab) | 890–1086 mm |
| 02.035.54 | Type B (Compact 1637 / 2051Aa / 2051Ab) | 1020–1216 mm |
| 02.035.55 | Type B (Compact 1637 / 2051Aa / 2051Ab) | 1130–1326 mm |
| 02.035.56 | Type B (Compact 1637 / 2051Aa / 2051Ab) | 1320–1516 mm |
Applications
- AL-KO mechanical boat trailer braking systems
- Replacement of worn or damaged brake cables
- Boat trailer maintenance and brake servicing
- Compatible with SB-SR-1635, Europlus and Compact AL-KO brake assemblies
