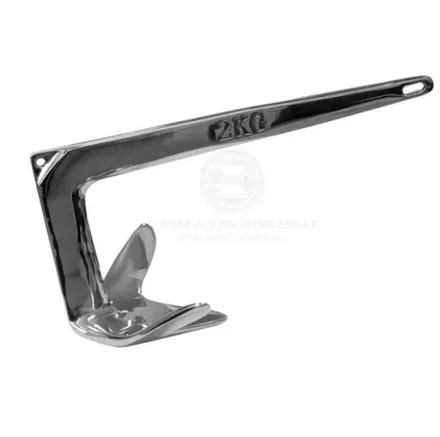

Anchor – Self Aligning Stainless Steel
- Best suited to soft seabeds.
- Self align anchors are designed to roll upright, irrespective of initial drop altitude, within two shank lengths of engaging the seabed.
- High holding power is obtained by the highly efficient fluke and shank design.
- Low retrieval force results from the short, broad, single fluke.
- Retrieval force is generally 30% of the prior holding power.
- 316G stainless steel, highly polished.
| Part Number | Weight | Length (A) | Width (B) | Approx. Boat Length | Depth (C) | Shank (D) | Eye (E) |
|---|---|---|---|---|---|---|---|
| SAW-12130 | 5kg | 470mm | 315mm | 6m | 200mm | 415mm | 10mm |
| SAW-12132 | 7.5kg | 532mm | 360mm | 8m | 210mm | 450mm | 10mm |
| SAW-12134 | 10kg | 583mm | 385mm | 10m | 225mm | 500mm | 13mm |
