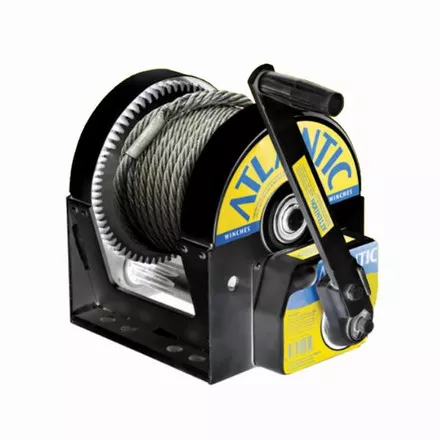

Atlantic Large Brake Winch – 1500kg – With Cable – Black

Atlantic Large Brake Winch – 1500kg – With Cable – Black Powdercoat

The Atlantic Brake Winches are ideal for most lifting purposes, including agriculture, manufacturing, events and entertainment. The self actuating automatic braking mechanism ensures smooth movement when lowering a load.

This model features a 1500kg capacity and a gear ratio of 15:1. The Dacromet treatment provides corrosion resistance, and metal covers protects the machine cut gears. A black powdercoat finish provides protection and style.

25m of 10mm galvanised steel cable is included, along with a rated D shackle.

The brake mechanisim automatically engages under tension, allowing the winch to hold its position without a manual lock or ratchet. A minimum load of 50kg is required to activate the brake. To lower the load, the handle is turned to progressively release the brake. Operation is smooth and secure.

Also available: Compact Brake 300kg, 500kg, 725kg; Large Brake 750kg, 1800kg; Car Trailer 2500kg.

Specifications

• Gear Ratio: 15:1
• Capacity: 1500kg (3300lb)
• Ultimate Brake Load: 7176kg
• Ultimate Tensile Stress: 70.38kN
• Application: Direct Lift
• Unit weight: 33kg
• Recommended Fastenings: 4x 16mm Bolts (Not Included)

Features

• 25m x 10mm galvanised steel cable
• Corrosion resistant Dacromet finish
• Hardened steel bushes
• Removable handle (bolted)
• Multiple mounting patterns (suits 16mm bolts)
