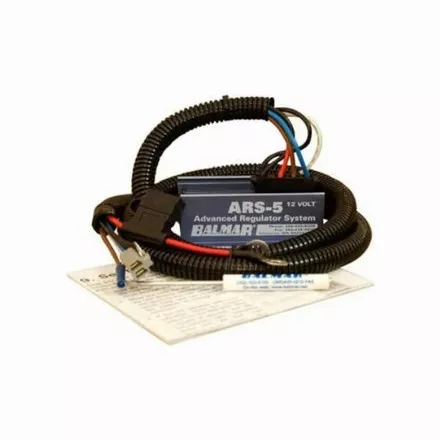

Balmar ARS-5 Multi-Stage Voltage Regulator 12V with Harness
The Balmar ARS-5 Multi-Stage Voltage Regulator provides dynamic monitoring of battery condition and adjusts alternator voltage and current output to deliver fast and safe battery charging.
Designed for single-engine, single-alternator marine applications, it offers five selectable charging programs for different marine battery types.
Features
- Multi-stage voltage regulation.
- 5 selectable charging programs for marine batteries.
- 9A maximum field current.
- Designed for 6-Series alternators up to 120A.
- Suitable for single-engine, single-alternator applications.
- Includes wiring harness.
- Not suitable for lithium batteries.
| Part Number | Voltage | Regulator Type | Selectable Programs | Maximum Field Current | Compatible Alternators | Maximum Alternator Output | Application | Lithium Compatible | Harness Included |
|---|---|---|---|---|---|---|---|---|---|
| BMR-B-ARS-5-H | 12V | Multi-Stage | 5 | 9A | Balmar 6-Series | 120A | Single Engine, Single Alternator | No | Yes |
