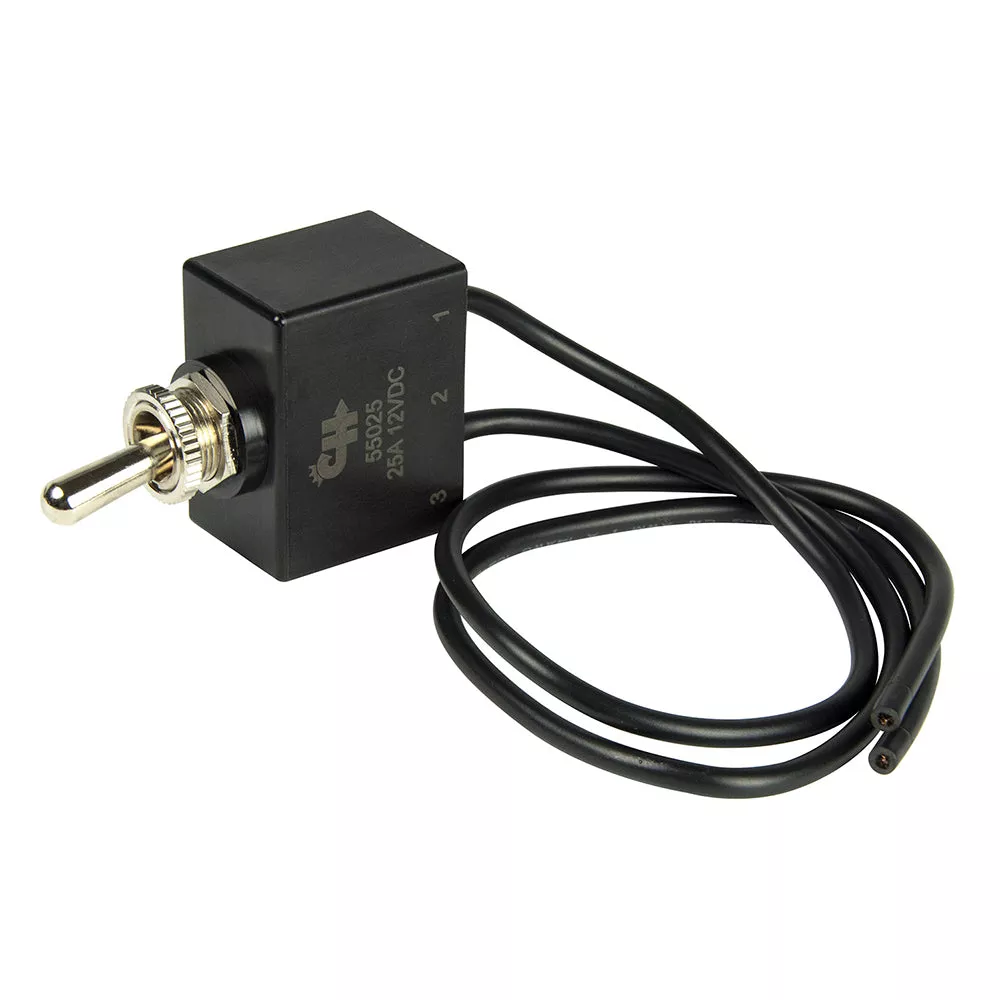

BEP SPST Sealed Toggle Switch – OFF/ON [1002010]

SPST Sealed Toggle Switch – OFF/ON

Single pole, single throw toggle switch turns one circuit on and off. Common applications include use for any single circuit requiring an on-off style switch. Completely sealed switches built to stand up to the most extreme conditions. Engineered to IP67 specifications utilizing a double o-ring within a bushing at the toggle and a full epoxy seal at the back.

Features:

• Nominal voltage is 12V/24V DC
• Rated for 25A at 12V DC, 15A at 24V DC
• 10″ 14 AWG wire lead terminals
• Mounting stem 15/32″ fits panels up to 1/8″ thick
• Same as Cole Hersee part number 55025

Specifications:

• Action: On/Off
• Color: Chrome
• Throw/Pole: SPST
• Box Dimensions: 2″H x 3″W x 5″L WT: 0.2 lbs
• UPC: 870216046693
