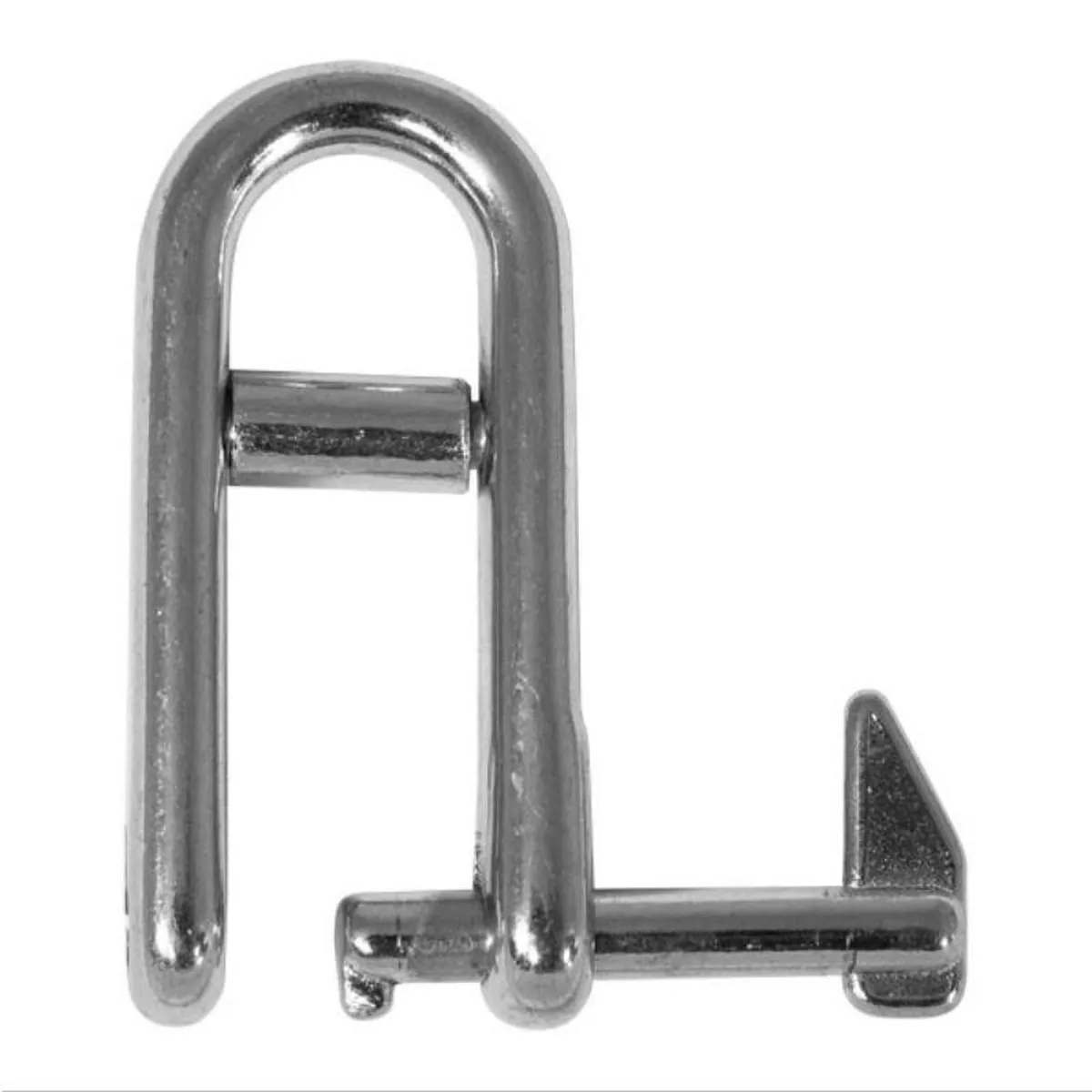

316 grade stainless steel captive pin shackles with quick release locking mechanism.
Security bar permanently secures shackle to halyard.
| Part Number | Pin Diameter | Pack Size | Length (A) | Inner Length (B) | Inner Width (C) | Breaking Load |
|---|---|---|---|---|---|---|
| BLA-161140 | 5mm | 1 | 38mm | 12mm | 13mm | 1200kg |
| BLA-161142 | 6mm | 1 | 43mm | 15mm | 15mm | 1600kg |
| BLA-161144 | 8mm | 1 | 60mm | 21mm | 20mm | 2800kg |
