Item 8253
Features:
- Meters read both discharge and charge current
- Simple 4-wire connection from shunt
- Meter senses and powers from shunt connection
- Includes appropriate DC shunt

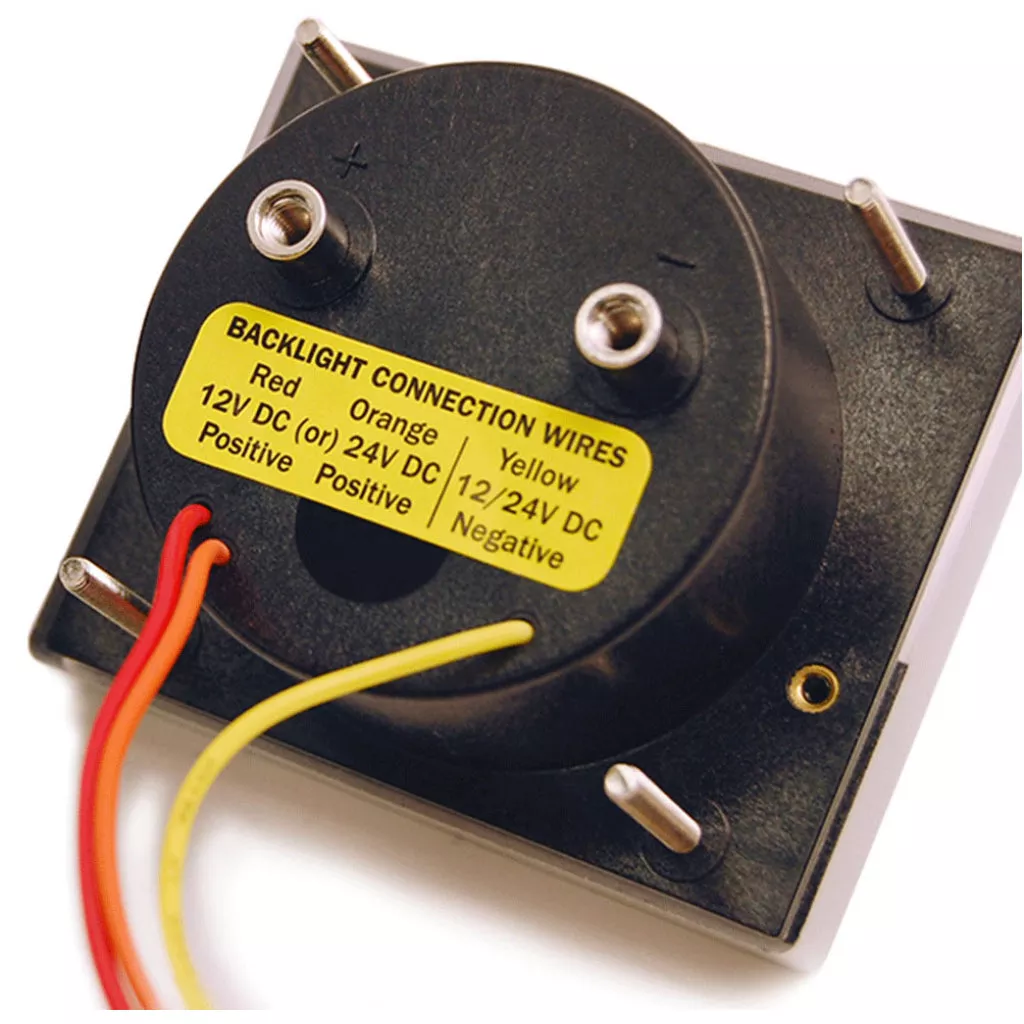

- Backlit meter face (separate 12 or 24V DC backlight connections)
Specifications
- Meter:Current
- Face Size:2.75in (69.85 mm)
- Function:100 to 50A
- Backlighting Amperage:16mA12V DC
- 20mA24V DC
- Meter Current:1mA at full scale
- Shunt Type:External 50mVfull scale
- Weight:0.60lb (0.27 kg)
