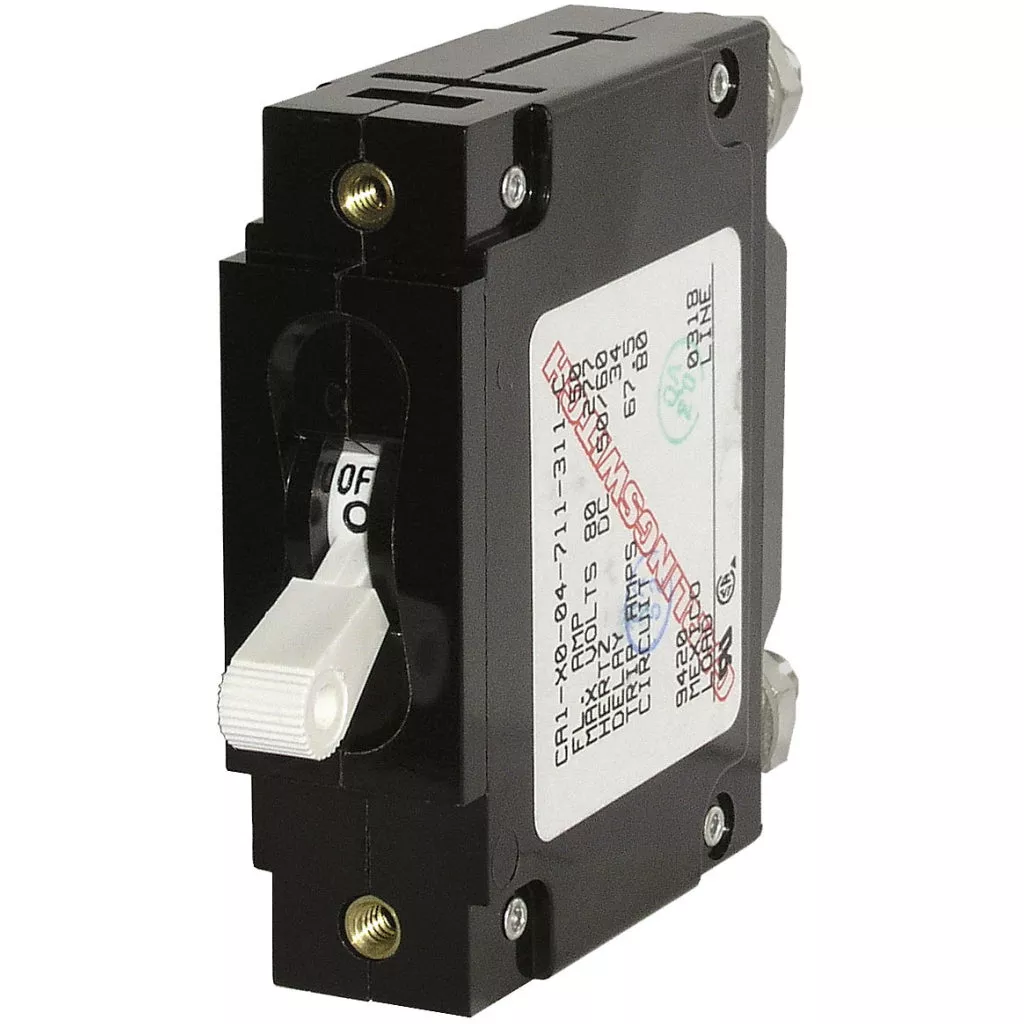

Item 7351
Features:
- Provides overcurrent protection for inverters, bow thrusters, and windlasses
- Combines switching and circuit protection into a single device
- “Trip Free”—cannot be held closed after trip
Specifications:
- Amperage:10AC
- 10 DC
- Color:White
- Actuator Style: Toggle
- Poles:1
- Maximum Voltage:240V AC
- 80V DC
- Circuit Breaker Type: Magnetic Hydraulic – trip free
- Terminal Stud Torque:35 in-lb (3.95 Nm)
- Interrupt Capacity: 5000A125V AC
- 5000A240V AC
- 10000A80V DC
- Minimum Operating Temperature: -40° C
- Maximum Operating Temperature: 85° C
- Mounting Screw:6-32 Stainless Steel
- Mounting Screw Torque:6 in-lb (0.68 Nm)
- Switching Cycles:10000
- Terminal Stud:1/4-20 Tin-Plated Brass
- Weight:0.25lb (0.11 kg)
