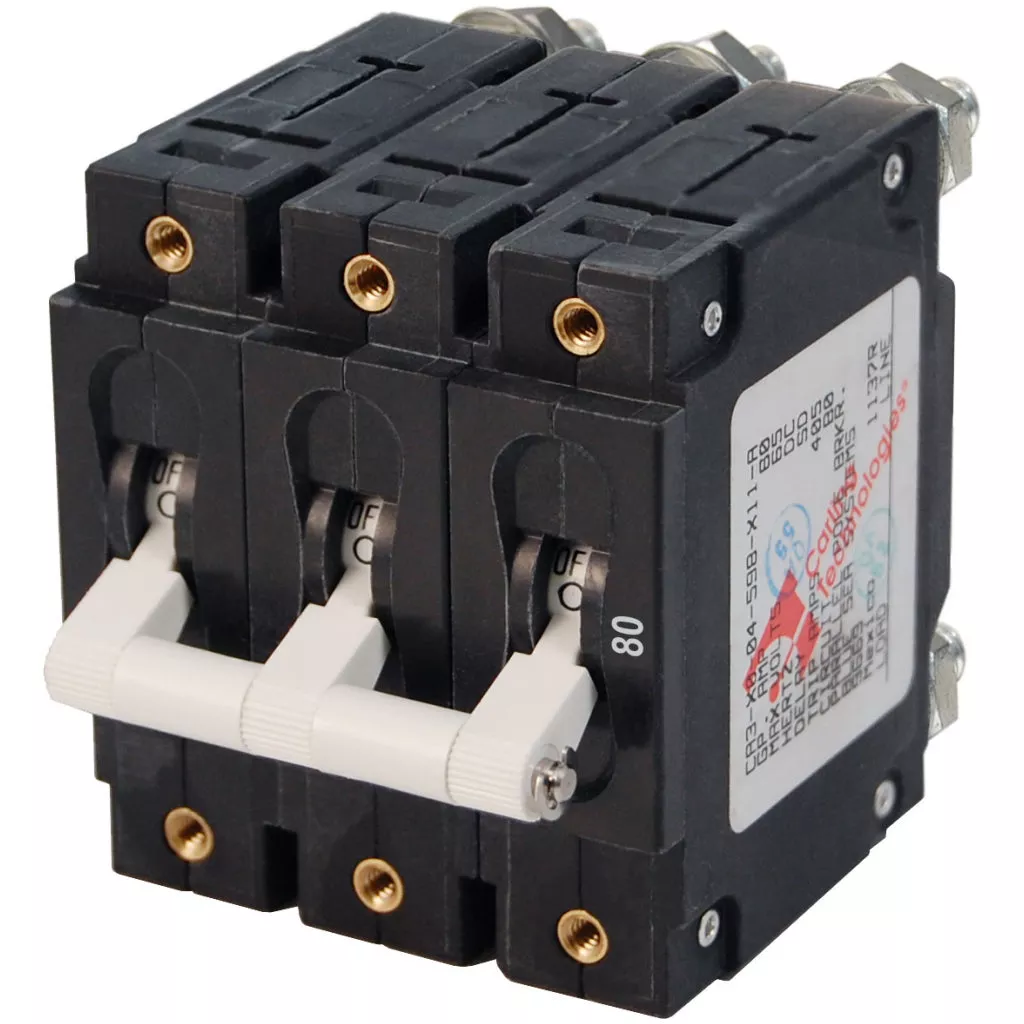

Blue Sea 80A C-Series Toggle Circuit Breaker

Item 7289

Features:

• 5,000 Ampere interrupt capacity to meet ABYC requirements for 120/240 Volt 50 Ampere main protection
• Double pole used as 120 volt AC main circuit breaker to switch hot and neutral
• Triple pole used as 240 volt AC main circuit breaker to switch lines (hot) and neutral
• Double and triple pole circuit breakers will trip all poles if any one pole trips
• “Trip Free” design cannot be held “ON” during fault current condition

Specifications:

• Amperage:80 AC
• Color:White
• Actuator Style:Toggle
• Poles:3
• Maximum Voltage:120V AC
• 240V AC
• 80V DC
• Circuit Breaker Type: Magnetic Hydraulic – trip free
• Terminal Stud Torque:35 in-lb (3.95 Nm)
• Interrupt Capacity: 5000A125V AC
• 5000A240V AC
• Minimum Operating Temperature:-40° C
• Maximum Operating Temperature: 85° C
• Mounting Screw:6-32 Stainless Steel
• Mounting Screw Torque:6 in-lb (0.68 Nm)
• Switching Cycles:10000
• Terminal Stud:1/4-20 Tin-Plated Brass
• Weight:0.90lb (0.41 kg)
