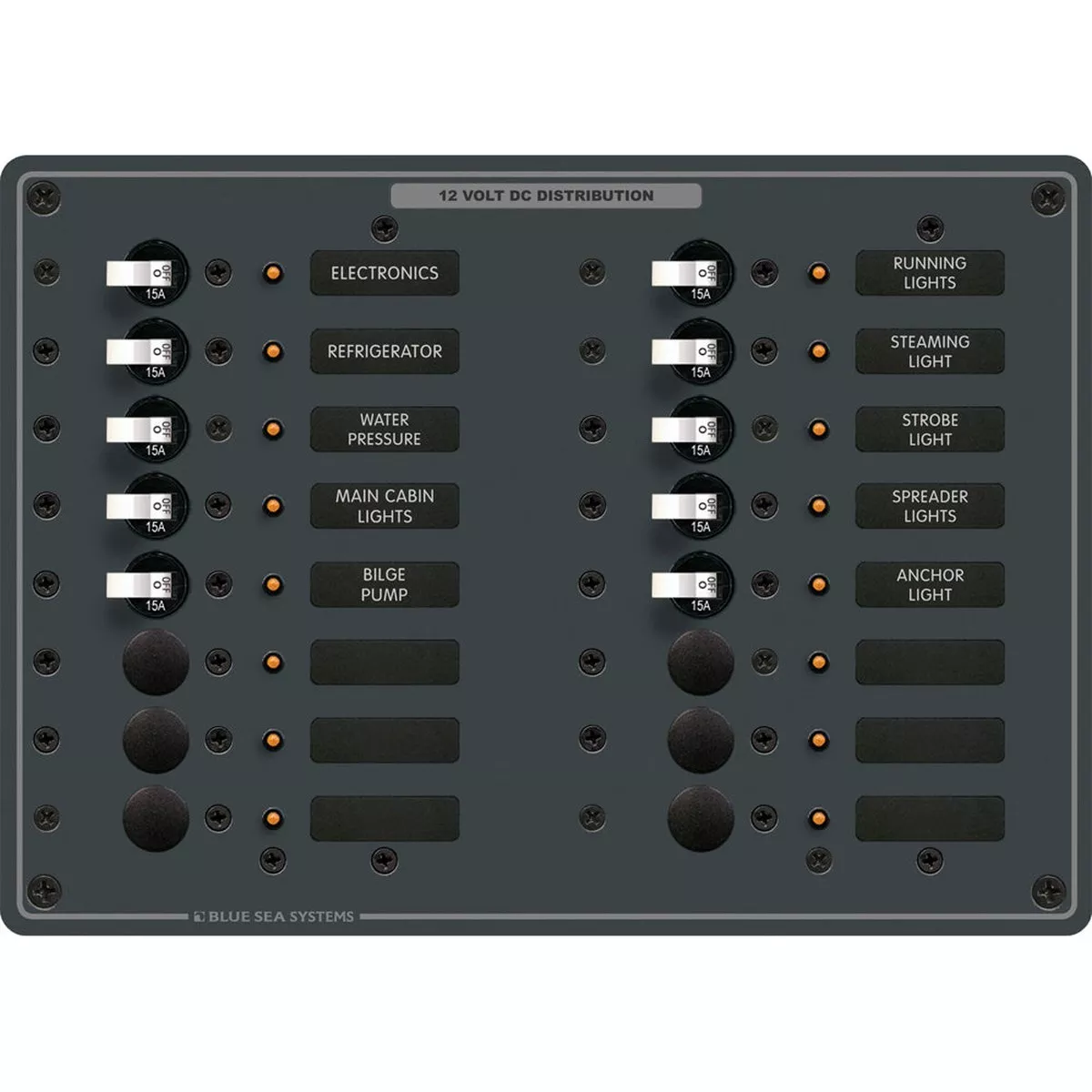

Blue Sea 8377 Panel DC 16 Position

Enhance your boats electrical system with our premium 16-Position Marine Circuit Breaker Panel, designed for reliability and ease of use in demanding marine environments. This fully pre-wired panel ensures optimal power distribution, allowing you to manage up to 16 circuits with ease while maintaining safety and efficiency on the water.

Key Features

• Comprehensive Circuit Management: Equipped with (10) 15A Single Pole Circuit Breakers, this panel provides robust protection for your boats electrical circuits.
• Dual Voltage Compatibility: Operates seamlessly on both 12V and 24V systems, catering to a wide range of marine applications.
• High Amperage Capacity: Supports up to 100A, ensuring ample power distribution for all your marine electrical needs.
• Fully Pre-Wired: Includes all positive, negative, and grounding buses pre-installed, simplifying the installation process.
• Expandable Battery Management: Features a toggle switch compatible with mounting up to 3 battery banks, ideal for larger vessels.
• Upgradeable Metering: Panels with analog meters can be upgraded to 24V with 8240 or 8243 (18-32V DC meters), providing flexibility for future enhancements.
• Backlit Circuit Labels: All circuit label positions are backlit on standard panels, ensuring visibility in low-light conditions without the need for additional kits.
• Indicator LEDs: “ON” LEDs installed in all circuit positions offer clear visual status indicators for each circuit.
• Corrosion Resistant: Treated with MIL-C-5541C or equivalent immersion undercoating, guaranteeing lifetime corrosion resistance in harsh marine environments.
• Durable Finish: Features a two-part polyurethane slate gray finish, providing both aesthetic appeal and protection against the elements.
• Robust Construction: Constructed from heavy 1/8″ aluminum 5052 alloy, ensuring strength and longevity.
• Standard Sizing: Adheres to industry-standard height and width, facilitating easy integration with existing marine electrical systems.
• Easy Installation: Equipped with countersunk mounting holes throughout and includes detailed installation instructions and a cutout template for hassle-free setup.
• Comprehensive Labeling: Comes with a set of 30 common Large Format Panel Labels, with over 500 individual labels available for customized circuit identification.
• Elegant Design: Features sleek white switches that complement the overall aesthetic of your marine dashboard.

Technical Specifications

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, visit P65Warnings.ca.gov.

Additional Resources

• Quick Guide (PDF)
• Owner’s Manual (PDF)
