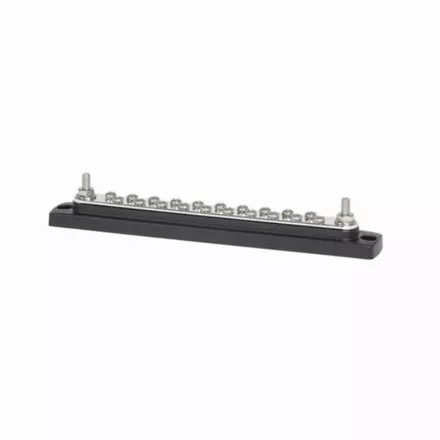

Blue Sea Systems BusBar 150A 20 Terminal
High-capacity 150A busbar designed to consolidate multiple wires or distribute power to multiple circuits.
Features a raised bus for easy wire access, stainless steel studs for high-torque connections and a heat-resistant UL 94-V0 rated base.
Features
- 150A capacity.
- 20 terminal positions.
- Insert-moulded stainless steel studs.
- High-torque connections for reliable electrical contact.
- Raised bus provides easy access to multiple wires.
- UL 94-V0 rated base material.
- Recessed mounting holes help prevent accidental shorts.
Materials
- Base Material: Reinforced Polycarbonate.
- Bus Material: Tin-Plated Copper CDA 110 / UNS 11000.
| Part Number | Max Voltage |
Screw Terminals |
Terminal Studs: |
Terminal Type |
Continuous Rating |
|---|---|---|---|---|---|
| BSS-BS-2302B |
300V AC 48V DC |
20 |
2 |
1/4″ Stud 8-32 Screw |
130A AC 150A DC |
