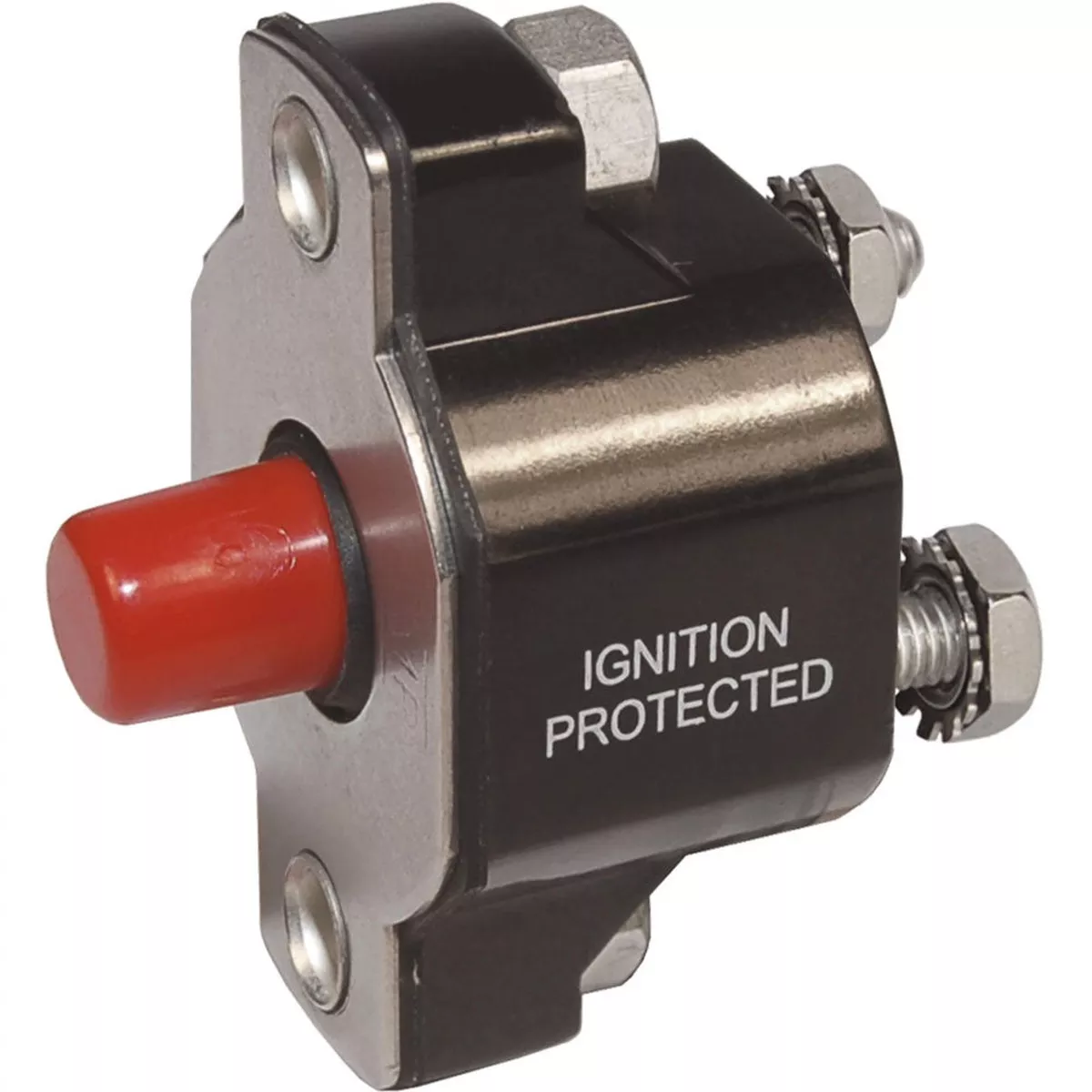

Circuit Breaker 40 Amp Push Button

40 Amp Medium Duty Push Button Circuit Breaker
Note: Replaces 35 Amp

Reset-only 40A circuit breaker is ideal for many DC & AC circuit protection applications that do not require switching.

• Blue Sea push button circuit breaker
• Reset-only circuit breaker with push-to-reset operation
• (2) 10-32 stainless steel terminal studs
• Captive star lockwashers meet requirements for anti-rotation and help eliminate the loss of small attaching hardware
• 40 amp circuit breaker can be used for main, branch, or 24-hour circuit protection
• Trip Free feature cannot be held ON during fault current condition
• Compact design
• Thermal trip type
• 5000A interrupt capacity @ 32 volts DC
• 3000A interrupt capacity @ 120 volts AC
• 32 volts DC maximum operating voltage
• 120 volts AC maximum operating voltage
• 8-32 mounting screw thread size
• 1.575 in. mounting screw bolt hole centers
• Meets SAE J1428, SAE J553, UL 1077 regulatory specifications
• Meets UL 1500 external ignition protection requirements
