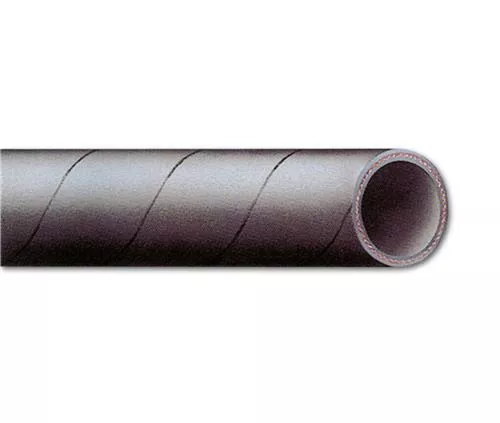

Cooling Water Hose 25x35mm Roll 5mtr
The Cooling water hose 25×35 mm roll 5 mtr is a black SBR hose with steel spiral reinforcement (steel spiral). The inner wall is smooth SBR and the outer wall is SBR with canvas print. Suitable for temperatures from -30 / +80 °C.
Product Features
- Inner diameter: 25 mm
- Outer diameter: 35 mm
- Wall thickness: 5 mm
- Bending radius: 125 mm
- Working pressure: 10 bar
- Burst pressure: 30 bar
- Vacuum: 0.9 bar
- Temperature range: -30 / +80 °C
- Maximum temperature: 80 °C
- Inner wall material: SBR, black, smooth
- Outer wall material: SBR, black, with canvas print
- Type: Steel spiral
- Roll length: 5 m
- Color: Black
- Sales unit: 1 roll
Technical Data
| Article | 3201.05 |
| EAN code | 8720763555945 |
| Inner diameter | 25 mm |
| Outer diameter | 35 mm |
| Wall thickness | 5 mm |
| Bending radius | 125 mm |
| Working pressure | 10 bar |
| Burst pressure | 30 bar |
| Vacuum | 0.9 bar |
| Temperature range | -30 / +80 °C |
| Roll length | 5 m |
| Color | Black |
| Sales unit | 1 roll |
Brand: White Label (Article 3201.05) (Barcode 8720763555945)
