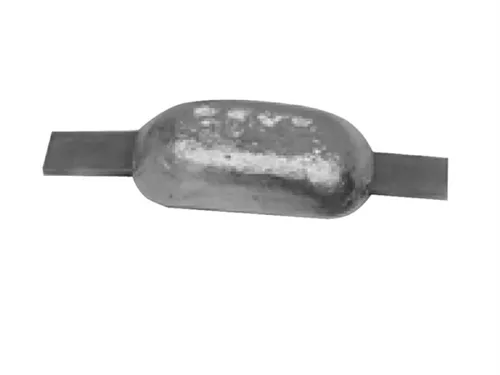

E. Polipodio Zinc Weld-On Hull Anodes – 0.6–4.0 kg
The E. Polipodio Zinc Weld-On Hull Anodes are sacrificial zinc anodes designed for weld-on installation on hull structures. The range includes four versions with different body dimensions, weights and total lengths.
The smallest version measures 110 × 60 × 12 mm and weighs 0.6 kg, while the largest version measures 200 × 90 × 35 mm and weighs 4.0 kg. Total length, including the mounting strip, ranges from 190 to 300 mm.
Key Features
- Brand: E. Polipodio
- Product Type: Weld-On Hull Sacrificial Anode
- Material: Zinc
- Installation: Weld-on
- Body Dimensions: 110 × 60 × 12 mm to 200 × 90 × 35 mm
- Total Length: 190–300 mm
- Weight Range: 0.6–4.0 kg
Available Models and Technical Specifications
| E. Polipodio Code | Article | Dimensions (L × W × H) | Weight | Total Length |
|---|---|---|---|---|
| ZS034 | 00100502 | 110 × 60 × 12 mm | 0.6 kg / 600 g | 190 mm |
| ZS033 | 00100501 | 110 × 60 × 28 mm | 1.0 kg / 1000 g | 190 mm |
| ZS028 | 00100508 | 150 × 90 × 40 mm | 3.0 kg / 3000 g | 250 mm |
| ZS027 | 00100509 | 200 × 90 × 35 mm | 4.0 kg / 4000 g | 300 mm |
E. Polipodio ZS034 – 110 × 60 × 12 mm
- Article: 00100502
- Material: Zinc
- Dimensions: 110 × 60 × 12 mm
- Weight: 0.6 kg / 600 g
- Total Length: 190 mm
- Mounting: Weld-on
E. Polipodio ZS033 – 110 × 60 × 28 mm
- Article: 00100501
- Material: Zinc
- Dimensions: 110 × 60 × 28 mm
- Weight: 1.0 kg / 1000 g
- Total Length: 190 mm
- Mounting: Weld-on
E. Polipodio ZS028 – 150 × 90 × 40 mm
- Article: 00100508
- Material: Zinc
- Dimensions: 150 × 90 × 40 mm
- Weight: 3.0 kg / 3000 g
- Total Length: 250 mm
- Mounting: Weld-on
E. Polipodio ZS027 – 200 × 90 × 35 mm
- Article: 00100509
- Material: Zinc
- Dimensions: 200 × 90 × 35 mm
- Weight: 4.0 kg / 4000 g
- Total Length: 300 mm
- Mounting: Weld-on
Model Selection
Select the required E. Polipodio weld-on zinc anode according to body dimensions, anode weight and total mounting length.
