Enerdrive solar panels are typically around 20+vdc open circuit and are well suited to 12V installations (or 24V by series connections of panels).
A fly lead cable is provided for easy connection of the 10 & 20W panels while the larger panels have MC4 compatible solar cable connectors included. Enerdrive stocks a full range of spare cables.
Some Basic Tips
- Keep your panel in direct sunlight as much as possible.
- Secure your Folding Solar Kit from theft around your work or campsite.
- Protect and store your portable folding kit in the most secure place you can to prevent accidental breakage
Please Download the Solar Panel Specification for more information

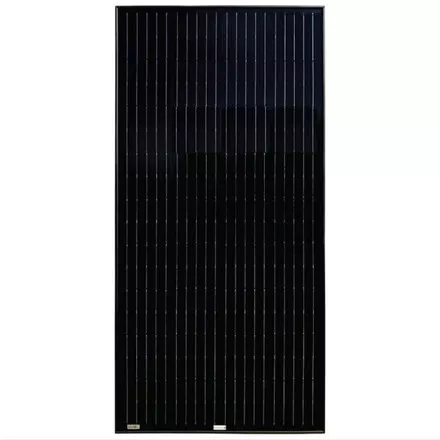

Note: Specifications subject to change without notice. THIS PANEL HAS BLACK FRAME
| Part Number | ENE-SP-EN190W-B |
|---|---|
| Max Power Pm (W) | 190 |
| Power Tolerance % | ± 3% |
| Max Power Voltage Vm (V) | 19.3 |
| Max Power Current Im (A) | 9.33 |
| Open Circuit Voltage Voc (V) | 24.2 |
| Short Circuit Current Isc (A) | 9.98 |
| Max System Voltage (VDC) | 1000 |
| Test Conditions | 1000W/m² , AM1.5 , 25°C |
| Part Number | Weight | L x W x H |
|---|---|---|
| ENE-SP-EN190W-B | 12kg | 1482mm x 680mm x 35mm |
