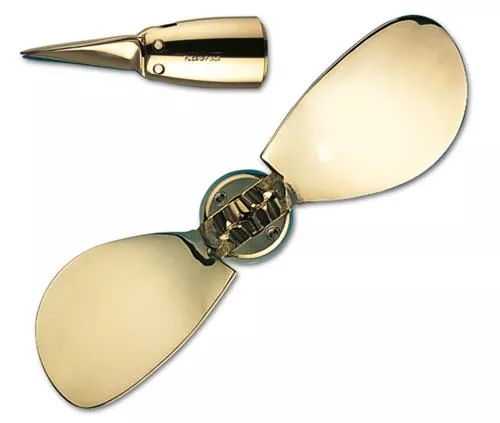

Flexofold Bladeset FP-2B 16×10 LH
The Flexofold FP-2B 16×10 LH bladeset is built for larger shaft diameters and precise mounting. With a Developed Area Ratio of 0.83, it delivers balanced thrust and efficiency. The left-hand rotating design and Nickel Aluminum Bronze construction make it ideal for robust marine applications.
Key Features
- Developed Area Ratio 0.83
- Designed for 35 mm shaft diameter
- Left-hand rotation
- Durable Nickel Aluminum Bronze material
Technical Data
| Product Diameter | 16 inch / 406 mm |
| Pitch | 16 inch |
| Number of Blades | 2 |
| Shaft Diameter | 35 mm |
| Maximum Shaft Hole Diameter | 40 mm |
| Taper | 1 : 10 |
| Keyway Width | 4 mm |
| Keyway Length | 10 mm |
| Developed Area Ratio | 0.83 |
| Rotation Direction | Turning left |
Brand: Flexofold (Article code: SP7841610) Barcode: 8720193082752
