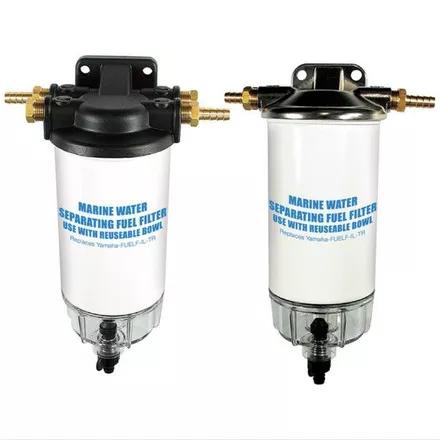

Fuel Filter – Long With Clear Bowl

Long Fuel Filters with Clear Bowl.

• Complete fuel filter and water separating assembly with long filter producing a flow rate of 90 US GPH at 10 micron filtration, to meet the requirements of Yamaha® Motor Corporation for outboard engine applications.
• Assembly includes a choice of cast alloy or cast stainless steel filter head, replaceable long filter element, clear bowl drained via a screw in plug, two brass tails to suit 8mm hose and two 3/8″ NPT brass plugs.
• Brass tails to suit 10mm hose are optional.
• Two each inlet and two outlet ports have 3/8″ NPT internal threads.
• Head is configured to interchange with Yamaha® OEM components.
• Filter element is configured to accept the 200482 clear bowl.
• 275mm high x 106mm wide.
• 8mm mount holes.
