GULLSWEEP GS-RM – Rail Mount

1. Place the vice clamp over railing & tighten so it is vertical to the rail. (Option, put tape around rail before mounting to indicate where GS-RM should be mounted, and also to protect the rail.)
2. Adjust center support pin to be vertical to the water & tighten adjustment nut. (See B)
3. Place your Gullsweep® on the support pin, adjust, if not level.
4. If the clamp is left on rail, remove the center pin to avoid injury!

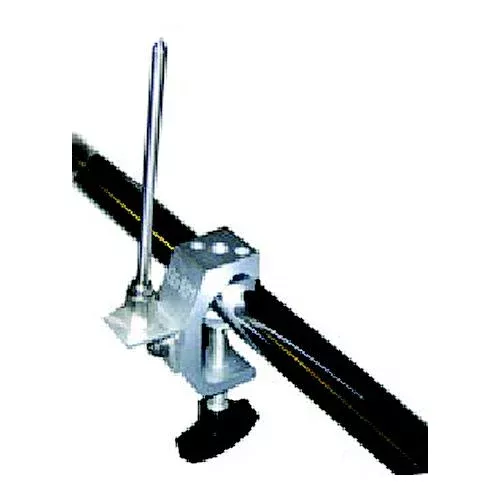

Center pin (shown) is not included with GS-RM because it utilizes the standard pin that comes with Gullsweep®.Gullsweep® Rail Mount comes in 2 sizes. Model GS-RM(up to 1-5/8” diameter) andModel GS-SRM(up to 1” diameter). To order GS-SRM,click here.
