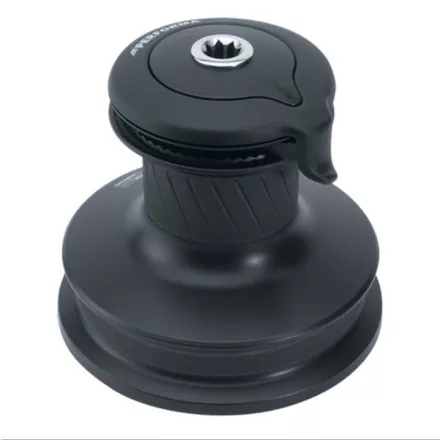

Two Speed, Two Drum Self-Tailing Quattro Performa Winch from HARKEN.
All Performa™ winches feature sandblasted aluminium one-piece drums optimized for halyard and sheeting applications using small-diameter, high-tech line.
This Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind. The 2-speed Quattro features two drum diameters and four line speeds.
- Sandblasted grip
- Narrow jaws for high-tech line
- Composite bearings
Learn more about ordering winches.
| Part Number | Size | Line Diameter | Upper Drum Diameter | Lower Drum Diameter | Base Diameter | Height | Weight | Gear Ratios | Power Ratio | Manual |
|---|---|---|---|---|---|---|---|---|---|---|
| HKN-40STQP | 40 | 8-12mm | 80mm | 154mm | 180mm | 175mm | 4.6kg | 12.13 & 26.28 | 113.5 & 239.9 | |
| HKN-46STQP | 46 | 8-14mm | 100mm | 188mm | 218mm | 246mm | 6.2kg | 2.30 & 9.17 | 11.7 & 46.5 |
