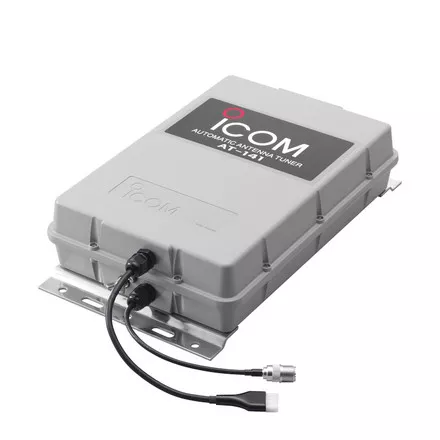

ICOM Automatic Antenna Tuner for GM800
- Frequency range 1.6 ~ 30 MHz
- 45 frequency memories for shorter tuning time.
| Part Number | ICO-AT141_65 |
|---|---|
| Frequency coverage | 1.6 ~ 30 MHz (with 7 m or longer antenna element) |
| Power supply requirement | 13.6 V DC ±15% (supplied from the HF transceiver) |
| Current drain | 1.0 A or less |
| Operating temperature range | –20°C ~ +55°C |
| Weight (approximately) | 2.5 kg |
| Antenna connector | SO-239 (50 Ω) |
| Maximum Input power | 150 W (PEP) 100 W (continuous) |
| Automatic tuning time | Approximately 2 to 3 seconds (general condition) Approximately 1 second (retuning to a memorized frequency) Maximum 15 seconds |
| Automatic tuning accuracy | SWR 2.0:1 or less (after tuning, except for multiples of 1⁄2 λ) |
| Usable pole diameter | 32 to 60 mm |
| IP rating | IPX6 |
| Note | Version 65 must be used for MED certification compliance with the GM800. |
