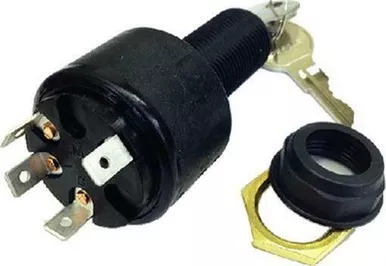

Ignition Switch by Sea Star Solutions (MP39800)

The POLYESTER IGNITION SWITCH-4 MP39800 by Sierra construction has ultimate corrosion protection that gets rid of oxidation. The housing of this switch eliminates potential shorts due to its non-conductivity. The POLYESTER IGNITION SWITCH-4 MP39800 inner barrier secures the contact plate to the cylinder lock. This switch installs in a standard 7/8″ diameter hole with 3 Screw tab terminals. Size of 1 -1/8″ maximum panel thickness length with four-blade terminal type and includes two keys. The industry-leading warranty for Sierra provides coverage for its ignition switches.

Key Features

• Finest polyester ignition switches for marine application

• Constructed from rust and corrosion-proof polyester housing

• 20 Amp rating

• 4 Position Conventional ignition switches, Positions: Acc – Off – Run – Start

• Replaces 49-39800, 49-39801, MP3980, MP39800, MP39802, 808282367688, 11-MP39800, 2312139800, 23121398009

Specifications

• BRAND: SEASTAR SOLUTIONS

• SKU: MP39800

• UPC:023121398009

• Weight:0.28 LBS

• Back-Up Nut: Brass

• Face Nut: Hex black plastic face nut

• RATED

• Ignition: 15 Amp @ 12v DC

• Solenoid:30 Amp @ 12v DC

• Accessory: 15 Amp @ 12v DC

4 Position Conventional, Positions: Acc – Off – Run – Start, Terminal Type:4 Blade, Material: Marine grade glass-filled polyester

This product replaces:

49-39800, 49-39801, MP3980, MP39800, MP39802, 808282367688, 11-MP39800, 2312139800, 23121398009
