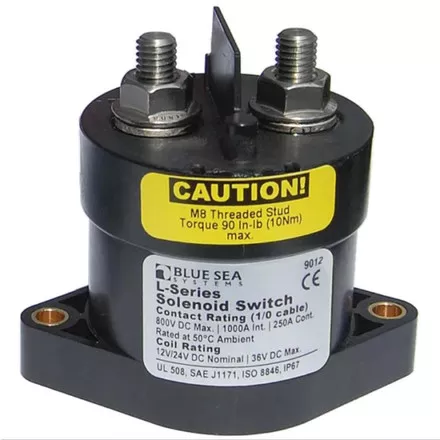

L-Series 250A Solenoid Switch
- Continuous duty, SPST – Normally Open
- Hermetically sealed contacts
- Activated by a remote ON–OFF switch BS-8230B (sold separately)
- Coil control circuit minimizes heating and amperage draw
- Regulatory: CE marked. IP67 protected against immersion up to 1 meter for 30 minutes. Ignition protected – ISO 8846 and SAE J1171. UL Certified – UL 508 Industrial Control Equipment
| Operating Temperature |
–55°C to +85°C |
| Coil Circuit Connection |
20 AWG Tinned Wire |
| Voltage Nominal |
12/24V DC |
| Coil Function |
Normally Open |
| Operating Current Changing State |
3.6A |
| Voltage Input |
9V-36V DC |
| Mounting Screws |
10 or M5 |
| Mounting Screw Torque |
15-35 in-lb |
| Weight |
0.41kg |
| Contact Rating |
| Continuous Rating |
250A |
| Cranking Rating (30 sec.) |
1000A |
| Voltage Maximum |
800V DC |
