Lumishore 60-0495 – Eclipse Command Center – 3 Zones

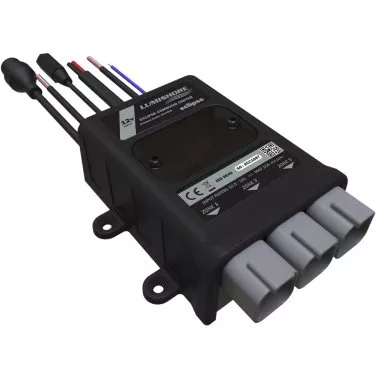

The Lumishore Eclipse Command Center is an ultra-compact lighting controller designed for seamless integration and full control of Eclipse lighting systems through your multifunction display (MFD). As the world’s first controller with built-in drivers and multiple lighting zones, it simplifies onboard lighting management while offering advanced customization.
The unit includes three configurable lighting zones as standard, with the possibility to expand up to six zones using additional expansion modules. Integrated Wi-Fi enables direct connectivity, while Ethernet support allows connection to compatible MFDs. Lighting can also be controlled via a simple switch, ensuring flexibility in any installation.
Key Features
- Integrated control for multiple Eclipse lighting zones
- Built-in Wi-Fi and Ethernet connectivity
- Expandable from 3 to 6 lighting zones
- Intuitive Lumishore user interface
- Plug & Play installation
Functions
- Sound-to-light
- Dimmer
- Strobe
- Color selection
Technical Data
| Voltage | 12 V DC |
| Maximum Current | 30 A (3 zones of 10 A) |
| Protection | Overvoltage, low voltage, reverse polarity |
| Waterproof Rating | IP67 |
| Height | 41 mm |
| Width | 108 mm |
| Length | 110 mm |
Brand: Lumishore
Barcode: 0753759367190
