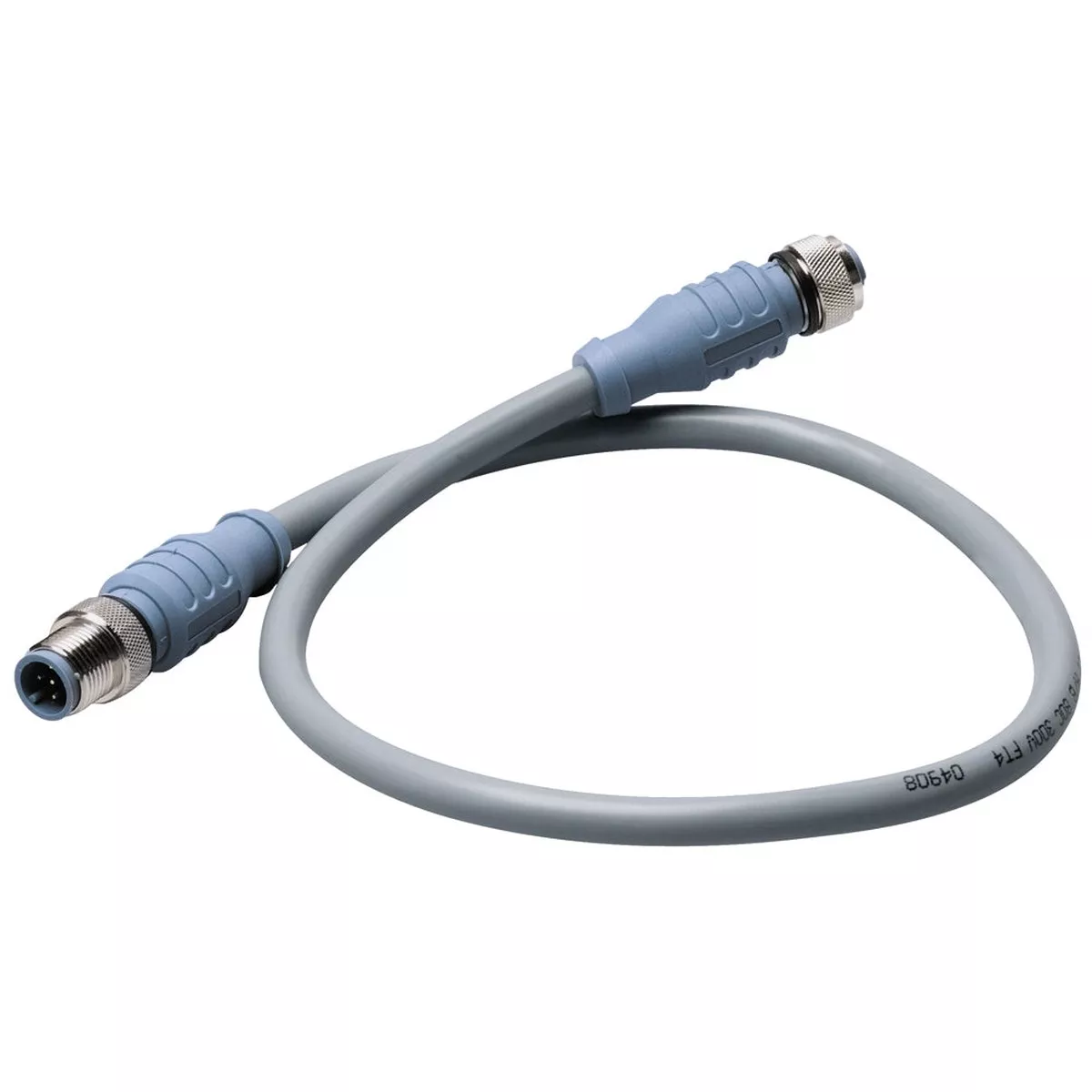

Enhance your marine electrical systems with our premium connector, engineered for durability and reliable performance in demanding marine environments. Whether you’re upgrading your boat’s wiring or installing a new electrical setup, this connector ensures secure connections and optimal functionality, meeting the highest industry standards.
Product Features
- Robust Thermoplastic PUR construction for longevity
- Corrosion-resistant brass plating in gold and nickel finishes
- Compact design with a 0.59″ connector outside diameter
- Compatible with NMEA 2000 data interfaces
Mechanical Specifications
| Feature |
Details |
| Contact Carrier Material/Color |
Thermoplastic PUR / Blue-Gray |
| Molded Body Material/Color |
Thermoplastic PUR / Blue-Gray |
| Contact Mat/Plating |
Brass / Gold |
| Coupling Nut Mat/Plating |
Brass / Nickel |
| Connector Outside Diameter |
0.59″ |
Electrical Specifications
| Parameter |
Value |
| Current Rating |
4.0 Amps |
| Voltage Rating |
250 V |
Cable Specifications
| Feature |
Details |
| Outer Jacket Material/Color |
PVC / Gray |
| Conductor Insulation Material |
HDPE (data pair), SRPVC (power pair) |
| Number of Conductors |
4 x 22 AWG, 22 AWG Drain Wire |
| Shielding |
- FOIL (Overall)
- FOIL (Power Pair)
- FOIL (Data Pair)
|
Environmental Ratings
| Aspect |
Specification |
| Protection Class |
IEC IP68, NEMA 1, 3, 4, 6P |
| Temperature Rating |
-40C to 80C (-40F to 176F) |
Certifications and Approvals
- UL Certifications:
- PLTC 75C Sunlight Resistant E90625
- AWM 80C 300V
- CSA Certifications:
- CMX-OUTDOOR-CMG LL54185 75C
- AWM I/II A/B 80C 300V FT4
- NMEA: NMEA 2000 Approved
Specifications
| Specification |
Details |
| Cable Length |
20′ |
| Data Interface |
NMEA 2000 |
| Box Dimensions |
2″ H x 7″ W x 7″ L |
| Weight |
1.05 lbs |
| UPC |
873804001562 |
