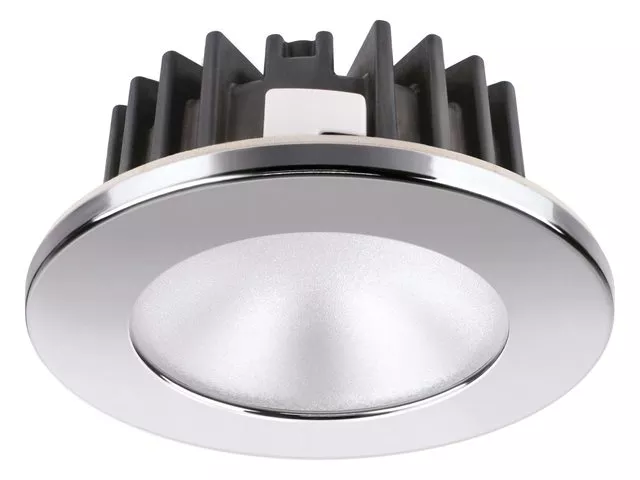

Quick KAI XP 6W LED Downlight Ø 82/65 mm
The Quick KAI XP 6W LED downlight is a stylish and efficient lighting fixture, designed with a 316 AISI stainless steel frame. It provides high-quality lighting in various colors, including warm white, red, and RGB/white. With its light flux controller, this downlight ensures flexible and adaptable illumination. Available in different frame colors such as white, polished, or matte stainless steel, it is a versatile and reliable choice for modern lighting solutions.
Features:
- Type: LED lighting fixture
- Voltage: 10-30 Vdc
- Power: 4W
- Current consumption: 0.33A at 12V or 0.17A at 24V
- Reverse Polarity Protection: Yes
- Diameter of body/ceiling: Ø 82/65 mm
- Installation depth: 30 mm
- Mounting type: “Feathers” mount
- Frame material: Polished Stainless Steel, Matte Stainless Steel, or White
- Light options: Warm White, Red, RGB/White
- Light flux controller included for adjustable lighting intensity
Product Specifications:
| Light Type | Voltage (Vdc) | Power (W) | Current Consumption | Reverse Polarity Protection | Body/Ceiling Diameter (mm) | Installation Depth (mm) | Mounting Type | Model | Frame Material | Light Type |
|---|---|---|---|---|---|---|---|---|---|---|
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP | Polished Stainless Steel | Warm White / Red |
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP | Matte Stainless Steel | Warm White |
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP | White | Warm White |
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP | Polished Stainless Steel | Red |
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP QCC | Polished Stainless Steel | RGB + White |
| LED | 10-30 | 4 | 0.33A/12V – 0.17A/24V | Yes | 82/65 | 30 | Feathers | LP QCC | White | RGB + White |
