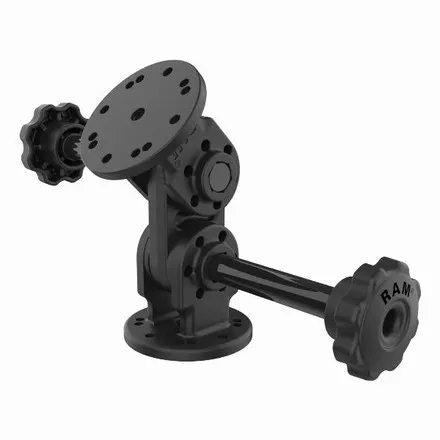

Ram Mounts Dual Straight Pivot Mount with Knob
The RAM® Dual Straight Pivot Mount with Knob (RAP-101-PV4-2SU) is a dual articulating, drill-down mounting solution.
Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM® holder or GDS® dock and secure the mount to any surface.
This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device up to 180-degrees on each joint to achieve the ideal viewing angle.
Features
- Low-profile, drill-down mounting solution for heavy-duty environments.
- Dual articulation joints pivot up to 180-degrees on each joint; extended knobs for easy adjustments.
- Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface.
- Made of high-strength composites for durability and reliability in the most demanding environments.
Materials
- High strength composite.
| Part Number | Product Dimensions | Plate Size |
|---|---|---|
| RAP-101-PV4-2SU |
Overall Height: 12.24 cm (4.82″) |
6.35 cm Diameter (2.5″) |
