Ram Mounts Size C Universal Post Clamp Mount
The RAM® Universal Post Clamp Mount with Round Plate – C Size Medium Arm (RAM-101U-247) is a mounting solution designed to secure large handheld devices to forklifts.

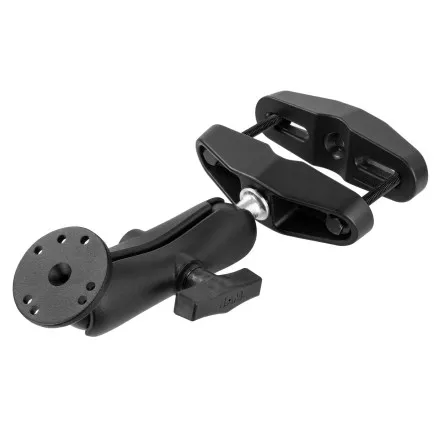

This kit consists of one (1) double socket C size medium arm, one (1) round plate with C size ball, and one (1) square post clamp.
The square post clamp will wrap around a square post with a maximum width of 4″ and is tightened by screwing the two plates together with the included nuts and bolts.
The RAM® rubber ball and socket technology dampens shock and vibration, as well as allows for almost infinite adjustment and perfect viewing angles.
Features
- 2.5″ round plate connects to RAM® device holders containing the universal AMPS hole pattern.
- Includes 4″ clamping base for posts and a medium length, C size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability.
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments.
Materials
- Marine-grade aluminum.
| Part Number | Ball Size | Clamp Range | Socket to Socket Length |
|---|---|---|---|
| RAM-101U-247 |
C Size (1.5″) |
4.45cm – 10.16cm (1.75″ – 4″) width |
11.8cm (4.66″) |
