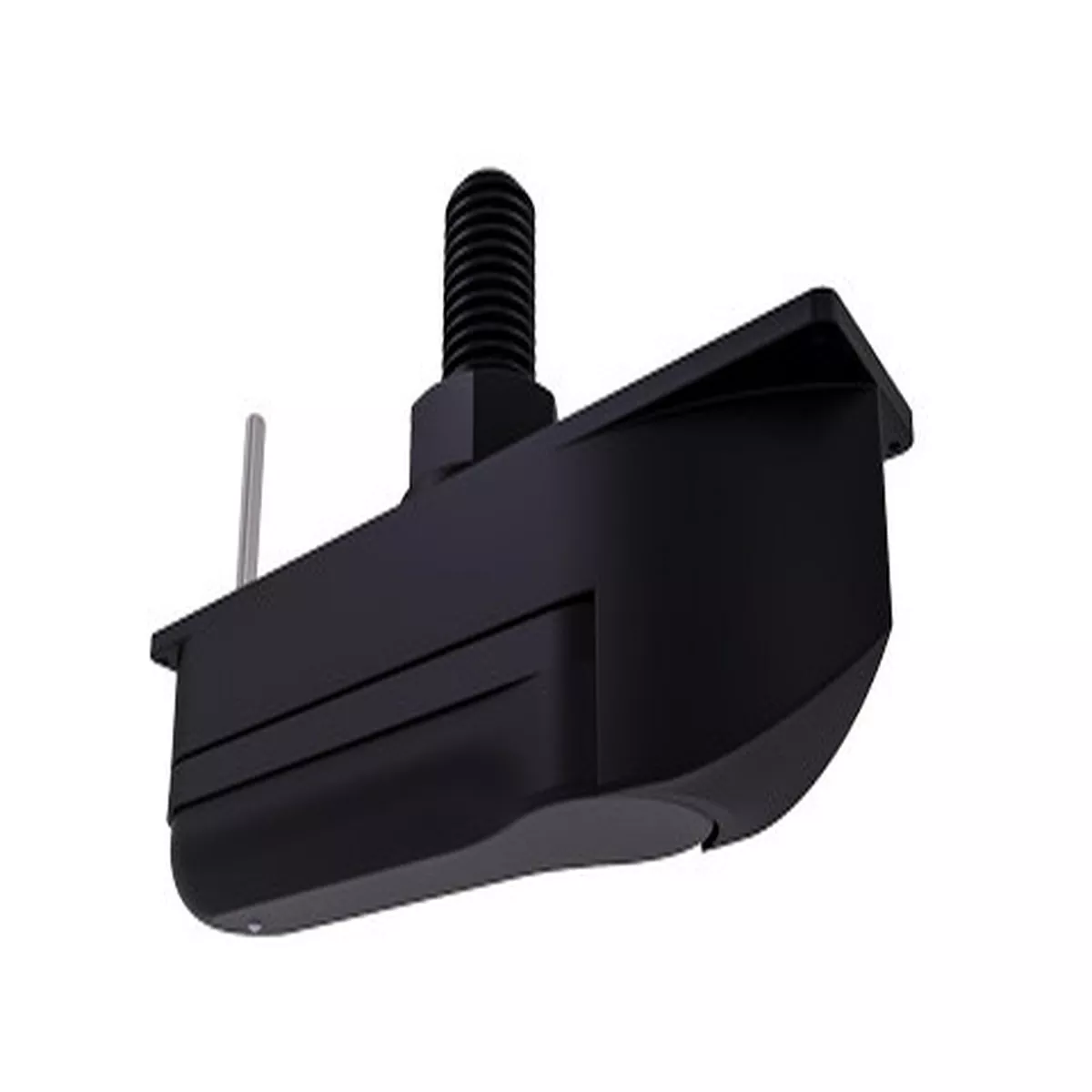

Raymarine HV-300 HyperVision Plastic 0 Through Hull Transducer

Raymarine HV-300 HyperVision Plastic 0 Through Hull Transducer|A80604 TheRaymarine HV-300 HyperVision Transducer is a plastic 0 through hull mount transducer with a 6m cable. Compatible with Raymarine Element HV displays. The HyperVision 3D transducer provides a multitude of frequencies all within a single housing. Capable of simultaneously supplying RealVision 3D, DownVision, SideVision and Conical High Frequency CHIRP, this is the only shallow-to-medium depth transducer you’ll ever need. 1.2MHz HyperVision, DownVision and SideVision frequencies offer the utmost in clarity and lifelike sonar imaging. General Specifications: Material: Plastic Max Depth: 3D: 300 / Down: 600 / Port: 300 / Starboard: 300 / Conical: 900 Frequency: 1.2 MHz CHIRP / 350 kHz CHIRP / 200 kHz High CHIRP Beam Width: 3D: 180 / Down: 60 / Conical: 25 Records: Depth / Temperature Hull Material: Fiberglass / Metal Cable Length: 19 Ft. / 6 M. In the Box:Anti-rotation nutHull nutAnti-rotation washerFairing blockDocumentationAnti-rotation boltTransducer (with fitted cable) MANUALS AND GUIDES
