Raymarine RSW Smart Wired Wind Transducer

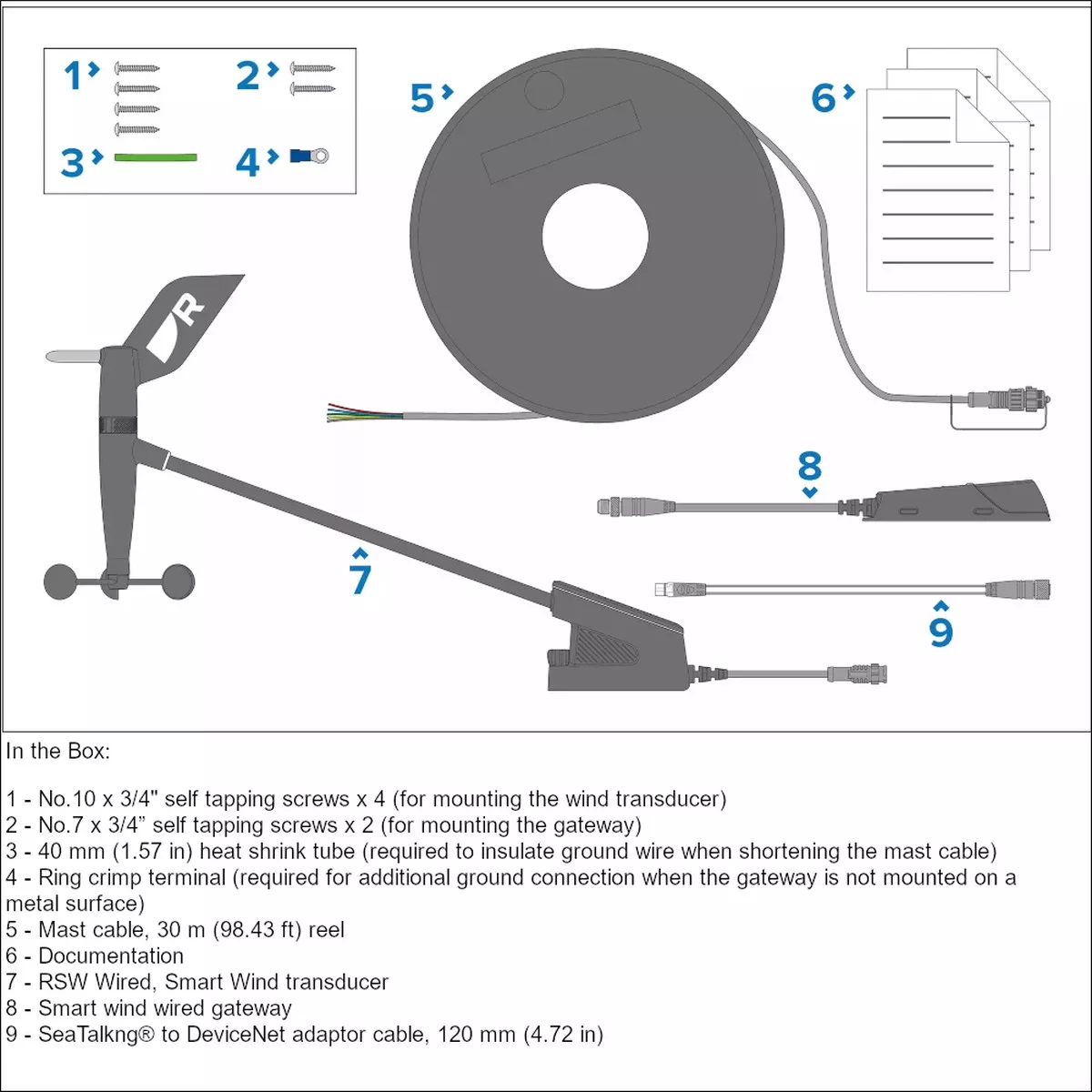

Raymarine RSW Wired SmartWind Transducer | E70670The RSW Wired, Smart Wind transducer is a professional-level wind sensor designed to deliver highly accurate calibrated wind speed and direction data. Supplied with a 30m Smart Wind mast cable as standard.The RSW transducer is engineered for simplicity and accuracy using an integrated 3D motion sensor and Raymarine Smart Wind technology to give every skipper a new level of sailingintelligence. Sailors can use high accuracy, true wind, speed, and polar calculations to make more intelligent race and performance sailing decisions when it matters most.Install & Go!Raymarine Smart Wind technology delivers expert level accuracy without the need for additional, expensive processors or extensive calibration and set-up.Finely TunedThrough rigorous wind tunnel testing, we’ve fine-tuned and balanced the instrument to ensure that data from the mast head is accurate and consistent.Sail SmarterTrusted, high-accuracy True Wind data combined with the Alpha Performance Displays and Axiom Chartplotters let you sail smarter.RSW Wind Key Features: Lightweight and durable carbon fibre arm for reliable performance. Includes 30 metre cable and a wired NMEA2000/SeaTalkNG gateway. Expert-level accuracy without complicated processors or cumbersome calibration tables. Integrated 3D motion sensor (AHRS technology) accounts for pitch and roll, automatically delivering improved true wind accuracy. Smart Wind technology delivers superior wind measurement by compensating for mast twist and bend, and the sensor automatically corrects the effects of airflow and upwash against the sails. Rotating mast compatible without any extra sensors.Specifications: Data connections: 1x mast cable, 1x NMEA2000 DeviceNet connectorLength: Wind transducer (including cable): 657.762 mm (25.90 in) Wind transducer (excluding cable): 540.712 mm (21.29 in) Wired gateway: 155.61 mm (6.13 in)Width: Wind transducer: 46.96 mm (1.85 in) Wired gateway: 47.38 mm (1.88 in)Height: Wind transducer: 305.86 mm (12.04 in) Wired gateway: 30.61 m (1.21 in)In the Box:RSW Wired, Smart Wind transducerMast cable, 30 m (98.43 ft) reelSmart wind wired gatewaySeaTalkng to DeviceNet adaptor cable, 120 mm (4.72 in)DocumentationNo.7 x 3/4 self tapping screws x 2 (for mounting the gateway)No.10 x 3/4″ self tapping screws x 4 (for mounting the wind transducer)40 mm (1.57 in) heat shrink tube (required to insulate ground wire when shortening the mast cable)Ring crimp terminal (required for additional ground connection when the gateway is not mounted on a metal surface)MANUALS AND GUIDES
