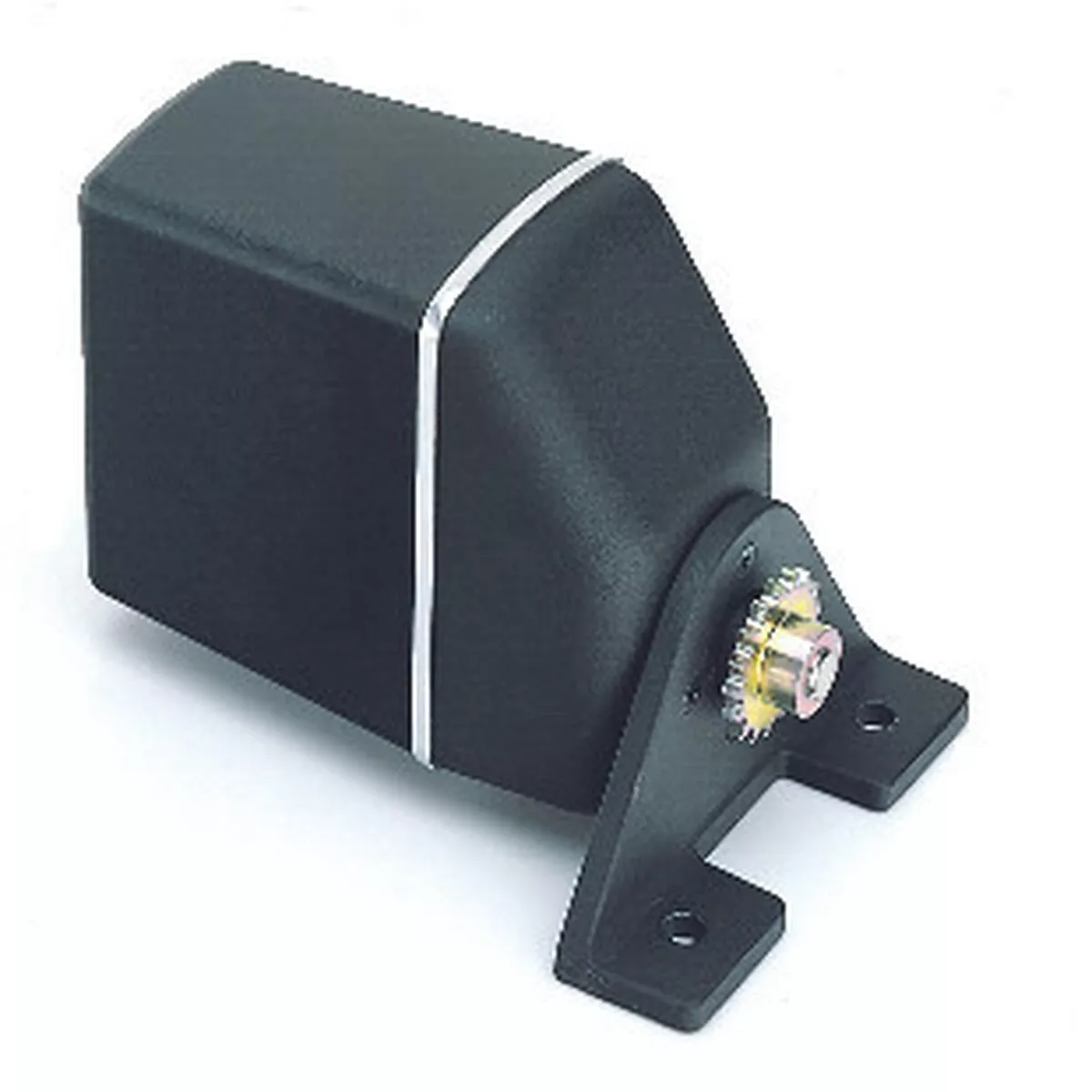

Raymarine Type 2/24v Rotary Drive

Raymarine Type 2/24v Rotary Drive/ M81137The Rotary Drive is an outstanding design by Raymarine that provides smooth, powerful autopilot controlled steering with quiet operation. Built for power and sailboat systems that can be driven from the helm position through a chain and sprocket (e.g. cable and rod steering system). You may be required to supply optional sprockets and further modification to the steering chain. For use with ACU-400 Actuator Control UnitType 2 (24v)Maximum boat displacement – 20,000 kgPeak output torque – 34 nmMaximum shaft speed – 33 rpmRecommended hard-over times (no load) – 10 secondsPower consumption – 60-84 WMANUALS AND GUIDES
