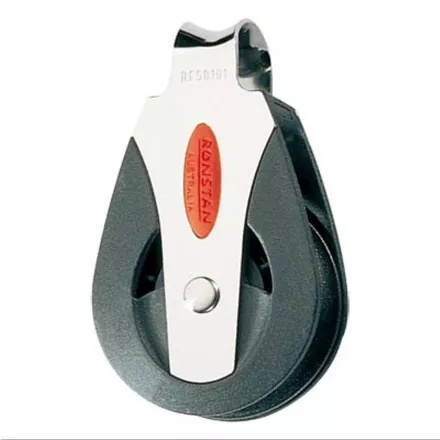

Sheaves running on Acetal or Torlon® ball bearings provide high performance & low friction. The 2-stage ball bearing system provides consistent performance over the full load range.
Features:
- Low friction, 2-stage ball bearing system
- High static and dynamic load capacity
- Lightweight
- Cheek cut-outs for easy bearing maintenance
Applications:
- Mainsheet
- Spinnaker sheets
- Halyards and other primary applications on boats up to 10m (33ft)
Materials:
- Acetal ball bearings
- UV stabilised Acetal sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
| Part Number | Sheave Ø | Max. Rope Ø | Max. Cable Ø | Pin Ø | M.W.L. | B. L. | Weight |
|---|---|---|---|---|---|---|---|
| RON-RF50101 | 50mm | 12mm | – | – | 500kg | 1500kg | 97g |
