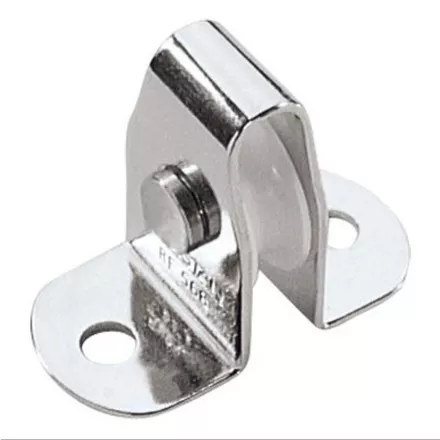

Lead blocks are a low profile solution for leading halyards or other rig sail controls back to cleats or jammers. When mounted in an inverted position, are frequently used as upright leads.
Applications:
- Typically used in dinghy spars for control lines such as outhauls
- Removable sheave
- The external tabs can be formed to fit the spar profile before fastening
Materials:
- U.V. stabilised Acetal sheave
- Grade 316 stainless steel load housing
| Part Number | Sheave Ø | Max. Rope Ø | Max. Cable Ø | Fastener Ø | M.W.L. | B. L. | Weight |
|---|---|---|---|---|---|---|---|
| RON-RF568 | 19mm | 5mm | – | 5mm | 250kg | 550kg | 20g |
