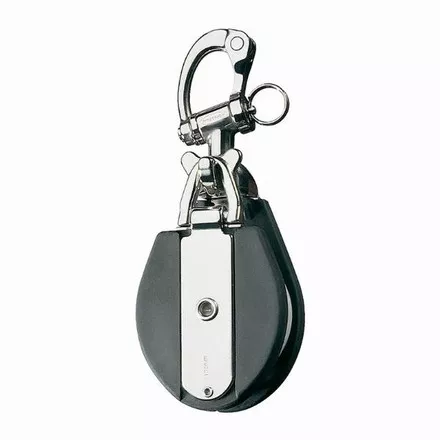

Ronstan Snatch Block Acetal Sheave 184mm
Single, swivel snap shackle head. Trunnion snap shackle provides the same swivel action and offers additional articulation from side to side.
Spare Parts: RF6262 Replacement Plunger Pin Kit.
Features
- Easily operated latch mechanism
- Lightweight
- Soft resilient cheeks reduce clatter and protect gelcoat and painted surfaces
- Snap shackle head allows block to swivel through 360 degrees
Applications
- Temporary sheeting point while changing sheets for boats up to 10m (33ft)
- Temporary reefing block for boats up to 10m (33ft)
- Spare or replacement block for general use on larger boats depending on line angle and load
Materials
- U.V. stabilised Acetal sheaves
- Grade 316 stainless steel frame and load strap
- Soft thermoplastic rubber cheeks
- Investment cast Grade 15-5PH stainless steel snap shackle
| Part Number | Overall Length | Sheave Diameter | B.L. | M.W.L | Max Rope Diameter | Weight |
|---|---|---|---|---|---|---|
| RON-RF6721 | 184mm | 64mm | 1700kg | 850kg | 12mm | 510g |
