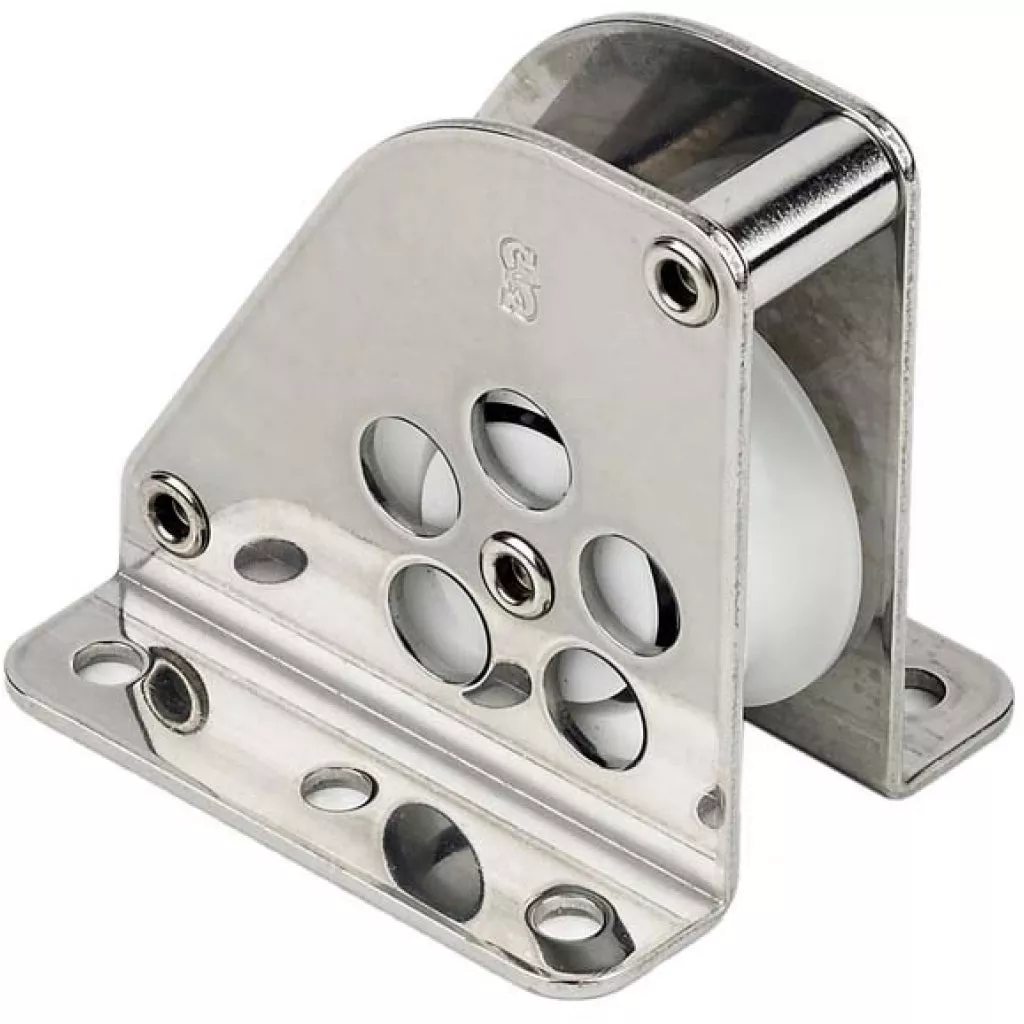

Schaefer over the top blocks are designed to route control lines over the forward edge of cabin houses, coamings or rails.
Features:
- Perfect for raised salon designs
- Polished and tumbled stainless steel cage
- Delrin Ball bearing sheave for a low friction lead
- Provides a smart solution for difficult leads
Specifications:
- Maximum line size: 7/16″ (11mm)
- Safe Working Load: 650lbs. (295kg)
- Length: 2-11/32″ (60mm)
- Width: 2″ (51mm)
- Height: 2-11/32″ (60mm)
- Hole Centers: 1-25/32″(45mm)
- Sheave Diameter: 1-7/16″ (37mm)
- Required Fasteners: 6 x 10 (5mm)
- Bearing Height: 1-13-32″(36mm)
