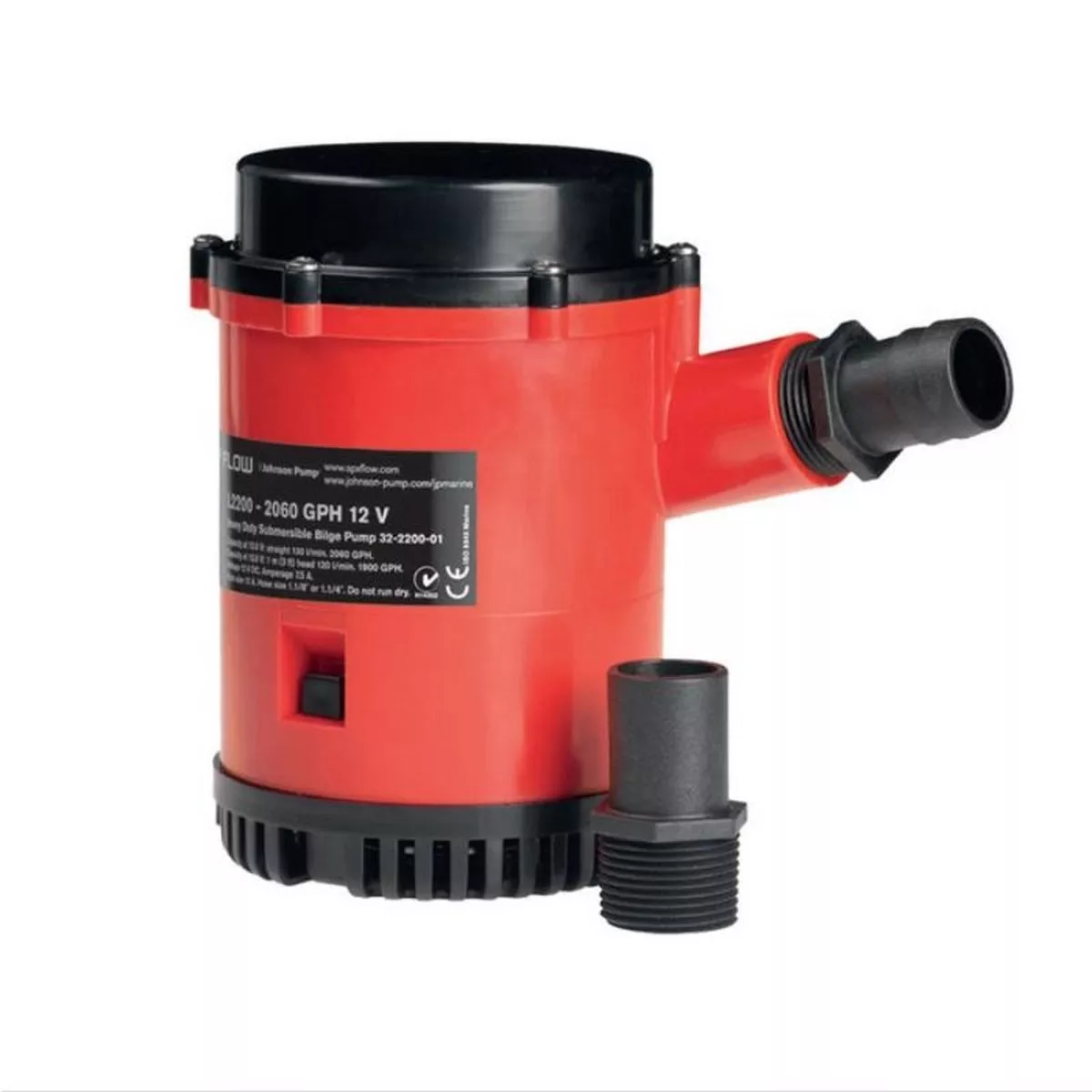

SPX Heavy Duty Bilge Pump – 2200GPH Model

Heavy Duty Bilge Pumpmanufactured by Johnson Pump SPX FLOW.Designed to meet and exceed the tough demands of commercial and recreational duty.This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life.The L2200 motor is sealed off by a mechanical seal design, while the L1600 model has lipseal.The impeller is carefully designed and tested to maximise head and flow.The L4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design.Universal base plate and a choice of 1″ or 2″ ports makes for a simple installation.Removable check valve included.N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level.Specified output is US gph open flow.Specifications:Shaft: 2343 grade stainless steelWire size: 1.3 mm216 GAWire length: 1.8 mMax. : 108Part NumberPowerModelCapacity (Open Flow)Capacity @1m headFuse SizeMaximum LengthHeightOutlet DiameterBLA-13181812V (7.5 amps)2200GPH120L/m (1900gph)130L/m (2060gph)12A2.7m177mm28/32mmBLA-13182024V (4.5 amps)2200GPH120L/m (1900gph)130L/m (2060gph)6A2.7m177mm28/32mm
