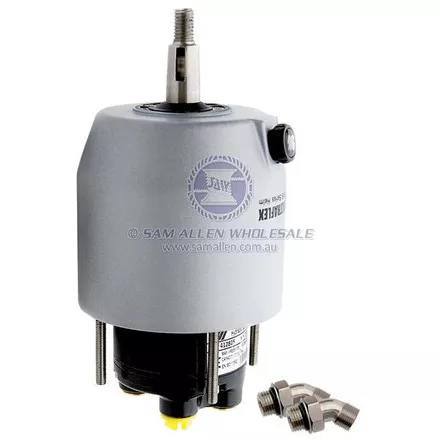

Ultraflex Silversteer Front Mount Helm Pumps – 84033

Ultraflex 33cc Silver Steer Helm Pump
SilverSteer have been specifically designed for high torque applications such as bass boats, flats boats, and boats with shallow dead rise and high horsepower.Featuring a 1500 psi check valve and a patented pressure valve that enhances responsiveness, the SilverSteer helms will deliver very precise steering at all torque loads.Available in three different displacement sizes.Compact design.Ball bearing piston race.Built-in lock valve for positive rudder lock.Integral relief valve for over-pressure protection 105Bar – 1500psi.3/4″ tapered stainless steel shaft.Easily accessible lock valve and shaft seal for replacement.Cast iron rotor for greater durability and longer life.Includes stainless steel fittings adjustable at 45 degree for 3/8″ tube.PART NO.84033WEIGHT:5kgRelief Valve Setting:105Bar – 1500psiMax Wheel Diameter:710mm – 28″Model:UP30F-SVSDisplacement / Revolution:33cc – 2.0cu.inNo. of Pistons:7Note:Only use SilverSteer cylinders and SilverSteer hoses, which are also specifically designed for high torque applications.
