Flexible Couplings from Vetus.

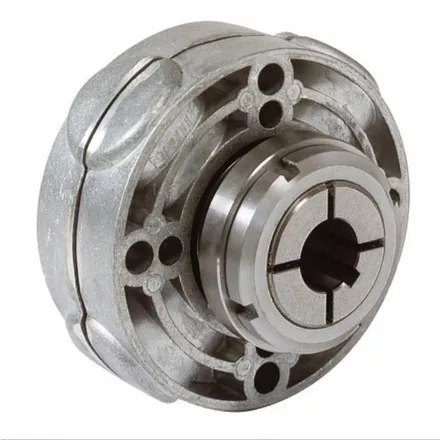

The KO51 flexible coupling has a special conical clamping hub, which guarantees a 100% concentric fit and is suitable for V-drives.
Type 6 (KO53) saves considerable installation time. It is pilot bored Ø 20 mm or with a cylindrical bore for Ø 25, 30 and 35 mm shaft. Comes with 4 and 5” connectors for Hurth, Velvet, TD, ZF and PRM.
| Part Number | Shaft Diameter | Diameter | Length | Weight | DIN 6270B = PLEASURE CRAFT KW (HP)/100 SHAFT RPM | MAX. ADMISSIBLE POWER AT 1500 RPM | DIN 6270A = COMMERCIAL CRAFT KW (HP)/100 SHAFT RPM |
|---|---|---|---|---|---|---|---|
| VTS-KO51 | 25mm | 137mm | 84mm | 2.7kg | 3.9KW (5.3HP) | 58.5 KW (79.5 HP) | 3.3 KW (4.5 HP) |
| VTS-KO52 | 30mm | 137mm | 84mm | 2.7kg | 3.9KW (5.3HP) | 58.5 KW (79.5 HP) | 3.3 KW (4.5 HP) |
| VTS-KO53 | 25mm – Type 6 | 137mm | 84mm | 2.7kg | 3.9KW (5.3HP) | 58.5 KW (79.5 HP) | 3.3 KW (4.5 HP) |
| VTS-KO54 | 20mm – Pilot | 137mm | 84mm | 2.7kg | 3.9KW (5.3HP) | 58.5 KW (79.5 HP) | 3.3 KW (4.5 HP) |
