Designed for horizontal installation.

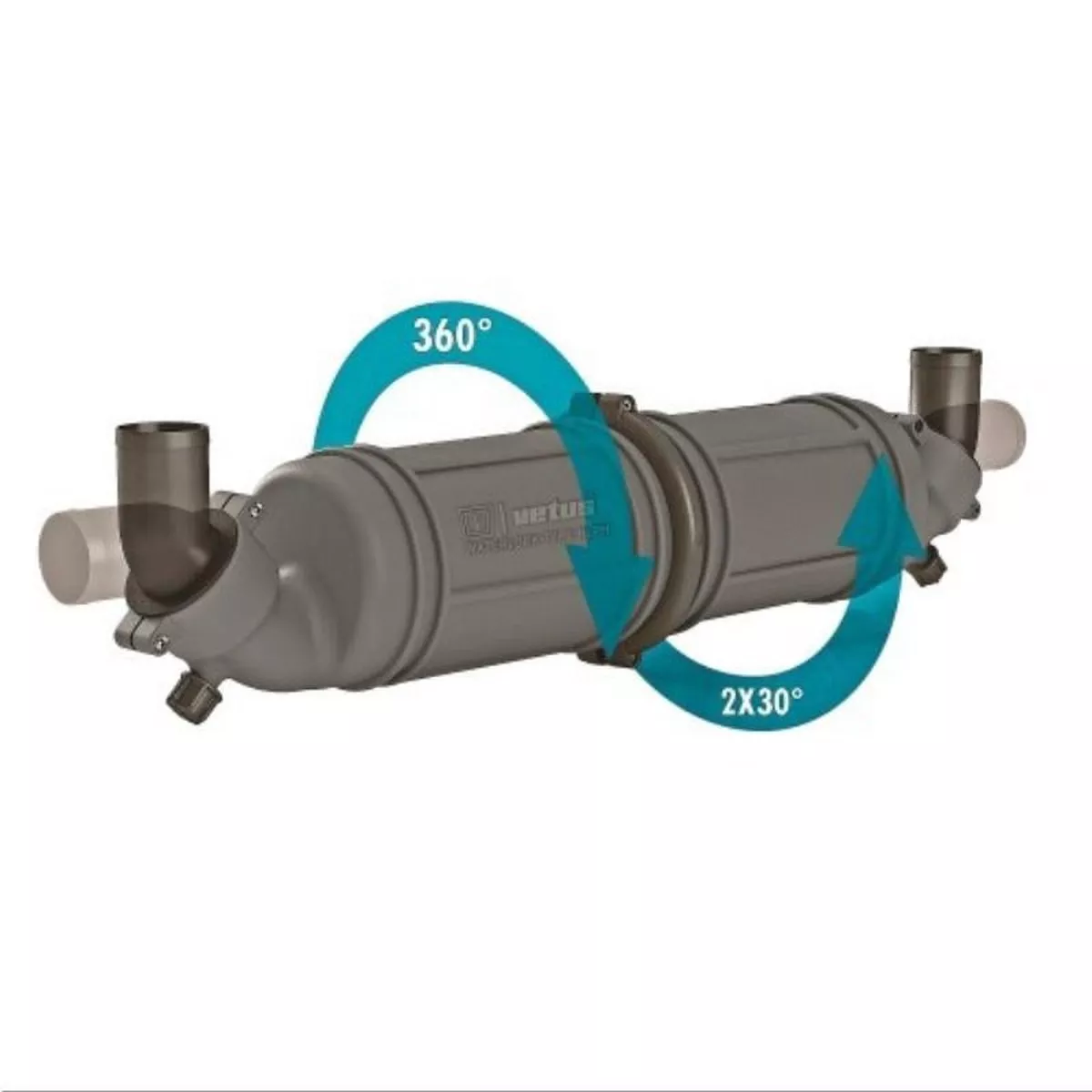

The body of this waterlock / muffler consists of 2 rotatable chambers and fully rotatable hose connections, ensuring simple and time saving installation in a wide range of applications.
Suitable for a wide range of applications
- Suitable for Ø 40, 45, 50, 60, 75 or 90 mm internal hose diameters
- Comes with 2 securing straps
| Part Number | Internal Diameter (D) | Capacity | Overall Length (A) | Internal Length (B) | Height (C) |
|---|---|---|---|---|---|
| VTS-NLPH40 | 40mm | 3L | 652mm | 400mm | 110mm |
| VTS-NLPH45 | 45mm | 3L | 652mm | 400mm | 110mm |
| VTS-NLPH50 | 50mm | 3L | 652mm | 400mm | 110mm |
