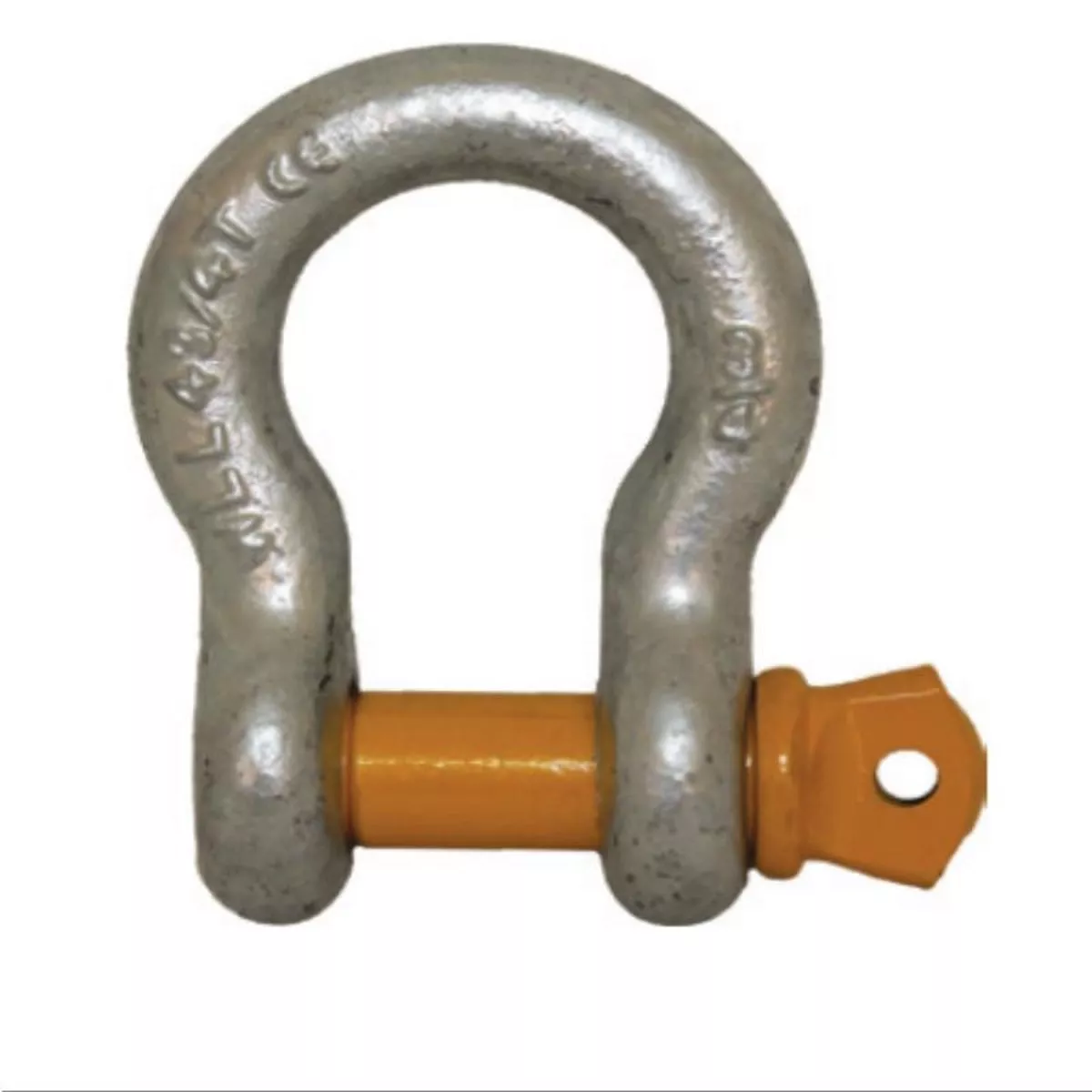

Yellow Pin Rated Shackles – Bow Type

Forged steel US type hot dipped galvanised shackles with a yellow pin. They have the working load limit stamped into the body of each shackle and they are 6x rated meaning they have a built-in safety factor of 6 to 1. E.G working load limit (WLL) 750Kg – Breaking Load 4,500 Kg. All these shackles have a larger pin diameter than the bail diameter. The size stamped into them is the bail diameter in inches – see size code below – and the working load limit stamped into each shackle should not be exceeded. CE mark is stamped into each shackle. Available in 7 sizes in both Dee and Bow styles. Part Number Bail Diameter Pin Diameter Working Load Breaking LoadRWB-6608 6mm 8mm 500kg 3000kgRWB-6609 8mm 10mm 750kg 4500kgRWB-6610 10mm 11mm 1000kg 6000kgRWB-6611 13mm 16mm 2000kg 12000kgRWB-6612 16mm 19mm 3250kg 19500kgRWB-6613 20mm 22mm 4750kg 28500kgRWB-6614 25mm 28mm 8500kg 51000kg
